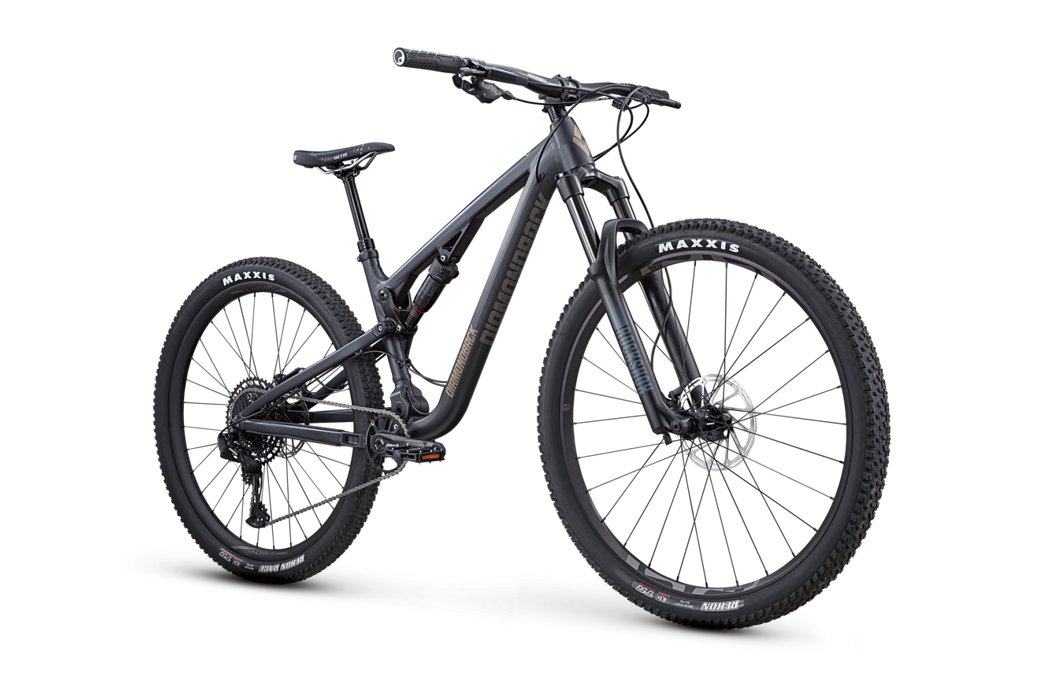

Diamondback Yowie 1 Bike
If you're an avid trail explorer, look no further – the Diamondback Yowie is the XC bike of your dreams. Designed to ensure comfort during long rides, it boasts 110mm of travel through our Level Link suspension platform, coupled with a RockShox 35 Silver 130mm fork for tackling diverse terrain.
Equipped with a Sram SX Eagle 1×12 drivetrain, this bike offers a generous range of gears while maintaining a lightweight and smooth performance. The SRAM Level hydraulic disc brakes provide reliable stopping power. With 29x2.4" Maxxis tires in the front and 2.25" in the rear, you'll enjoy excellent traction on various surfaces.
To enhance your adventure, the Yowie features a TranzX dropper post, giving you the flexibility you need for different riding conditions. Welcome the newest addition to the Level Link family – a short travel 29'er designed to elevate your trail riding experience.
Components and Specifications:
COMPONENT | SPECIFICATION |
---|---|
FRAME | Yowie Alloy 29" Frame, 110mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Dropout, 1.5" Tapered Headtube |

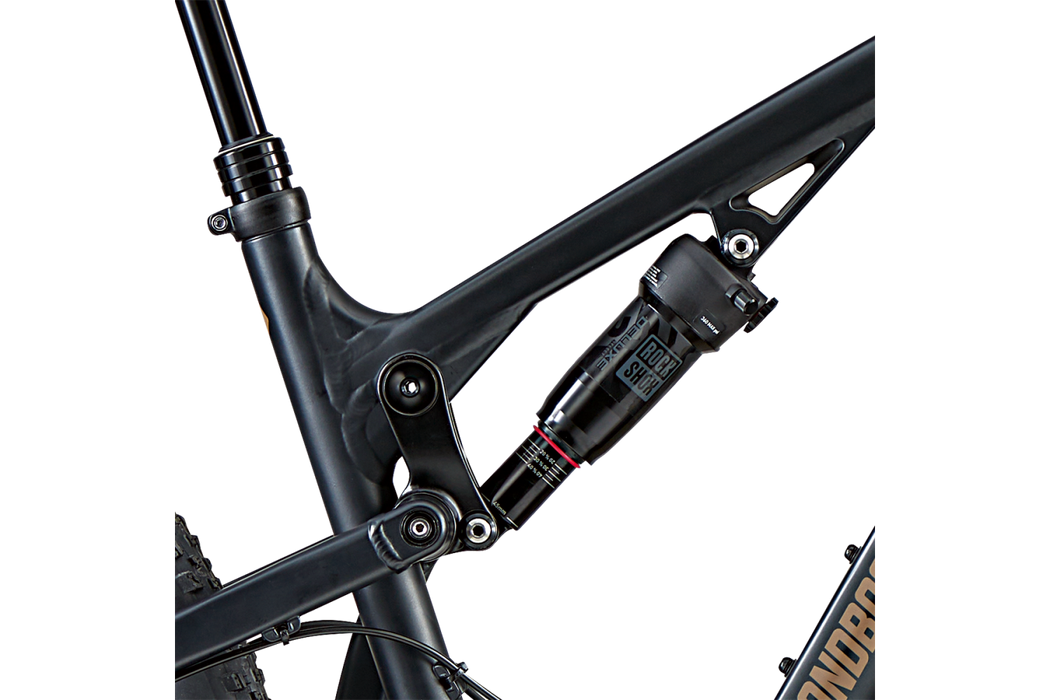

REAR SHOCK | Rock Shox Deluxe Select Debonair |
FORK | RockShox 35 Silver, Solo Air, 130mm of Travel, Turn-Key Lock-out, 15x110mm Boost, Maxle Stealth, 1.5 Tapered Steer |
HEADSET | FSA No. 42 Sealed Cartridge |

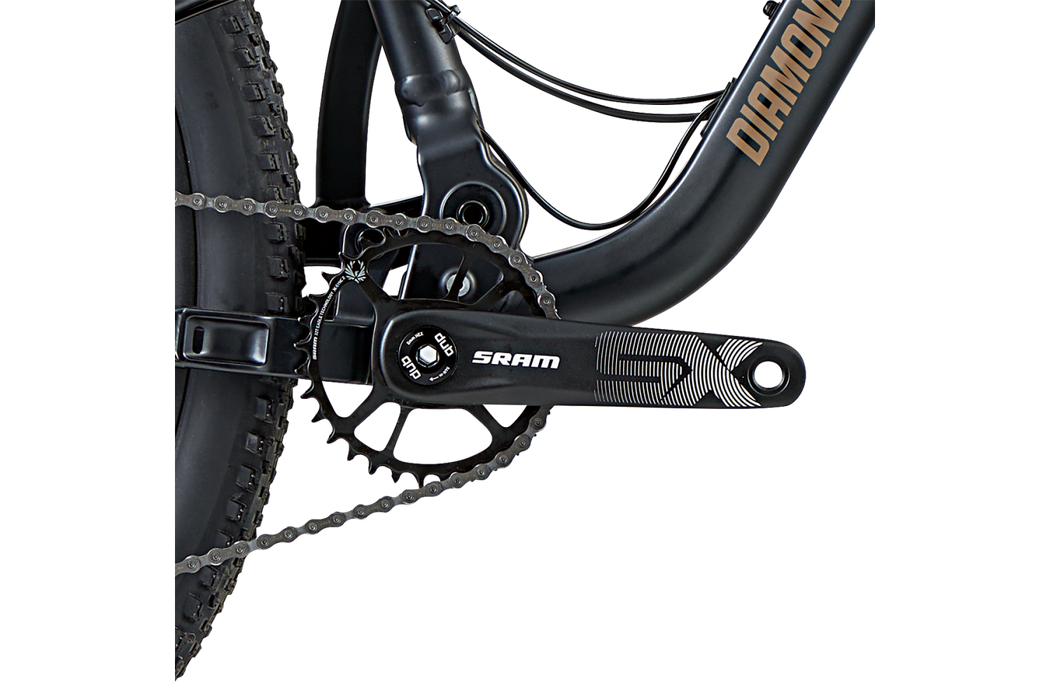

CRANKS | SRAM SX, 32T |
SPROCKET | 32T Steel |
BOTTOM BRACKET | SRAM DUB |
FRONT DERAILLEUR | N/A |

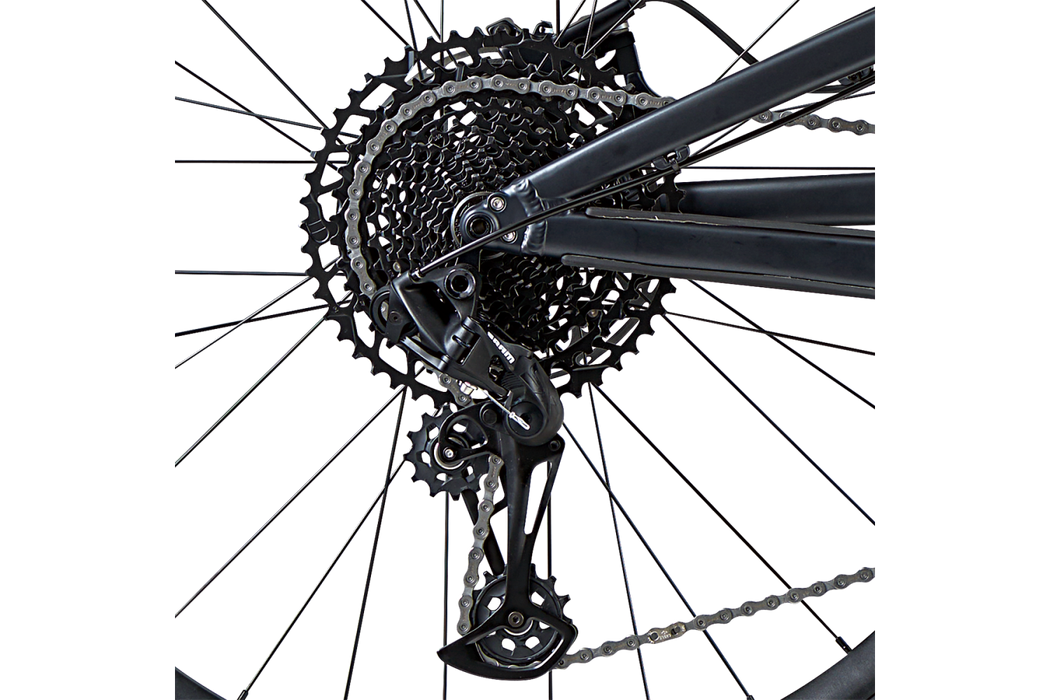

REAR DERAILLEUR | SRAM SX Eagle, 12 Speed |
SHIFTER | SRAM SX Eagle, 12 Speed |
COGSET | SRAM PG1210, 12 Speed, 11-50T |
CHAIN | SRAM NX Eagle, 12 Speed |
FRONT HUB | 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing |
REAR HUB | 32h Aluminum Boost 148x12mm Thru-axle, Sealed Cartridge Bearing |
SPOKES | 14g Stainless Steel |
RIMS | Diamondback Blanchard 28R, Taped for Tubeless, 32h |
TIRES | Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear, both Tubeless Ready |
BRAKE LEVERS | SRAM Level |
PEDALS | DB Aluminum Platform w/Replaceable Pins |

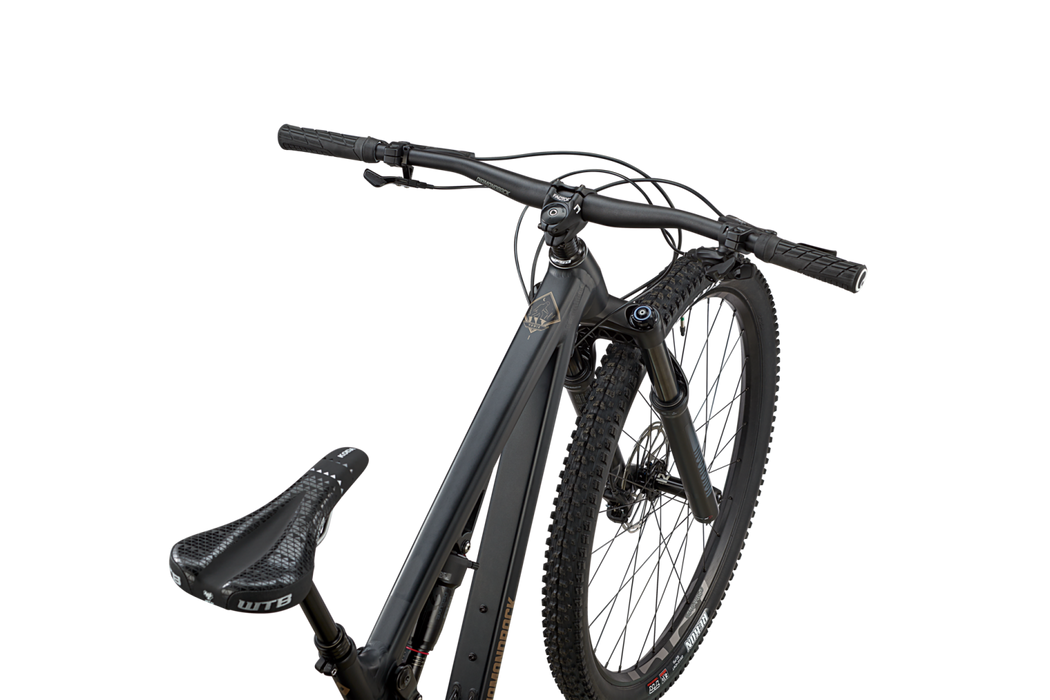

HANDLEBAR | DB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore |
GRIPS | Ergon GE10 Evo Lock-On |
STEM | DB35 Aluminum 35mm Reach, 35mm Bar Bore |
SEAT | WTB Koda Comp |

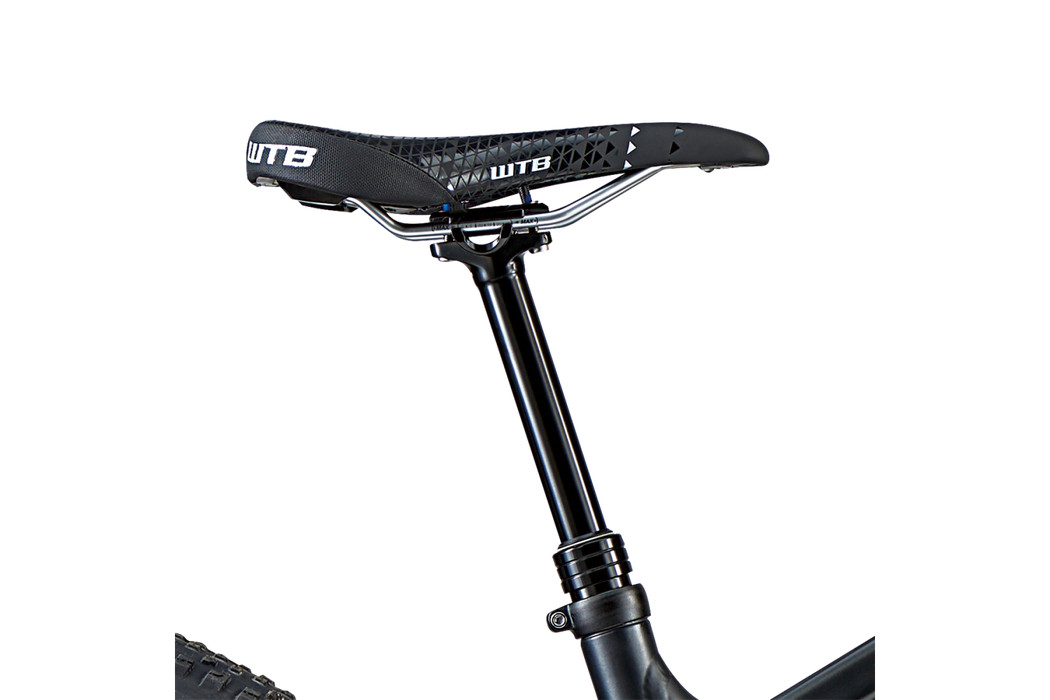

SEATPOST | TranzX YSP18JL, Internal Dropper, Travel: XS-100MM, S-100MM, MED-130MM, L & XL-150MM |
EXTRAS | Tool Kit, DB Shock Pump, DB Mud Guard, Tubeless Valves |
BRAKES | SRAM Level, 180mm F/R |
Geometry:
FRAME SIZE | SM/15 5'4" - 5'7" | MD/17 5'7" - 5'10" | LG/19 5'10" - 6'2" | XL/21 6'2" - 6'6" |
---|---|---|---|---|
Rider Height | - | - | - | - |
Bike Stand Over Height | 730.0 mm | 730.0 mm | 738.0 mm | 740.0 mm |
Bike Seat Tube Length | 383.0 mm | 410.0 mm | 460.0 mm | 485.0 mm |
Bike Top Tube Length | 592.0 mm | 617.0 mm | 637.0 mm | 660.0 mm |
Bike Head Tube Length | 90.0 mm | 100.0 mm | 110.0 mm | 120.0 mm |
Bike Head Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
Bike Seat Angle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° |
Bike Wheel Base | 1152.0 mm | 1176.0 mm | 1199.0 mm | 1223.0 mm |
Bike Chain Stay Length | 435.0 mm | 435.0 mm | 435.0 mm | 435.0 mm |
Bike Fork Offset | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
Bike Bb Height | 336.0 mm | 336.0 mm | 336.0 mm | 336.0 mm |
Bike Bb Drop | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
Bike Stem Length | 35.0 mm | 35.0 mm | 35.0 mm | 35.0 mm |
Bike Handlebar Width | 780.0 mm | 780.0 mm | 780.0 mm | 780.0 mm |
Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 435.0 mm | 485.0 mm | 485.0 mm | 485.0 mm |
Bike Stack | 604.0 mm | 613.0 mm | 622.0 mm | 631.0 mm |
Bike Reach | 430.0 mm | 450.0 mm | 470.0 mm | 490.0 mm |
Bike Fork Travel | 130.0 mm | 130.0 mm | 130.0 mm | 130.0 mm |
