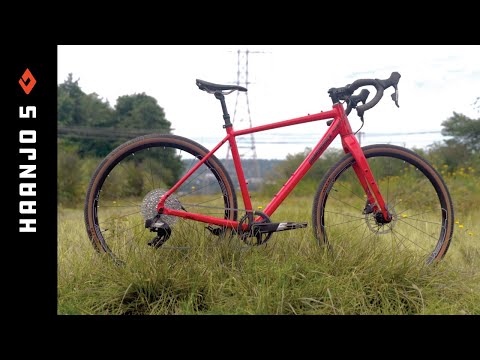

Diamondback Haanjo 5 Gravel Bike

Save 32% Save 32%
Original price $2,950.00
Original price $2,950.00 - Original price $2,950.00
Original price $2,950.00
Current price $1,999.96
$1,999.96 - $1,999.96
Current price $1,999.96
Color: Gloss Red
Size: X-Small

You find yourself in unfamiliar territory, and that's a wonderful thing, for the Diamondback Haanjo 5 is a gravel bike designed to lead you away from the well-worn paths. We've centered it around our dependable 6061 alloy frame and equipped it with a carbon fork featuring thru axles both front and rear. Off-road trails are seldom flat and smooth, which is why we've endowed this beast with an abundance of gears and equipped it with HED Tomcat wheels paired with the dependable traction of WTB Vulpine 700x40c tires.

But that's not all; we've elevated this ride with the inclusion of SRAM Apex AXS eTap 1x12 drivetrain components and a Kind Shock dropper post. These additions grant you enhanced control precisely when you require it. Are you in pursuit of your next grand adventure? When the road takes a turn for the rugged, this bike truly shines.



 Components and Specifications:

SPECIFICATIONS DESCRIPTION
FRAME DB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc, 142x12mm Thru-axle, Top Tube Bag Mounts, w/Replaceable Hanger
FORK DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
HEADSET FSA No.42, Sealed Cartridge
CRANKS SRAM Apex DUB Wide, 40T
BOTTOM BRACKET SRAM DUB BSA

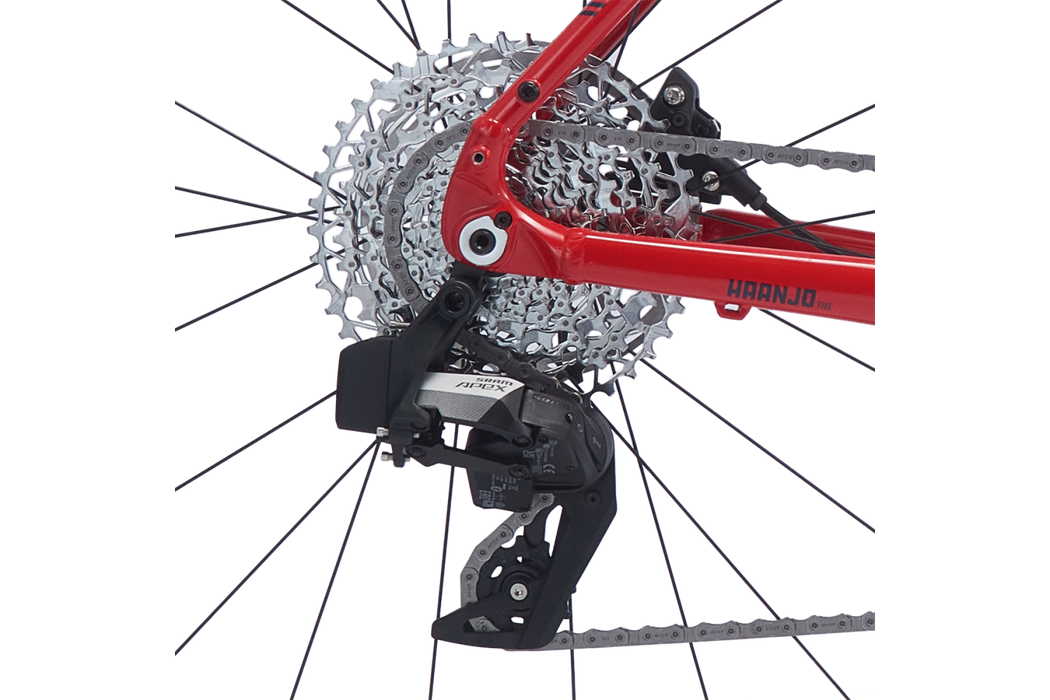

REAR DERAILLEUR SRAM Apex AXS Eagle eTap, 12 Speed
SHIFTER SRAM Apex AXS eTap, 12 Speed
COGSET SRAM PG-1230 Eagle 11-50T, 12 Speed
CHAIN SRAM Apex
FRONT HUB 24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
REAR HUB 24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
SPOKES 2.0/1.8/2.0 Butted Stainless Steel
RIMS HED Tomcat Disc, 24h, 25mm Internal Width, Taped for Tubeless
TIRES WTB Vulpine, Dual DNA Compound, TCS Light Tubeless Casing 700x40c
BRAKE LEVERS SRAM Apex Hydraulic
PEDALS DB Resin Gravel Platform
HANDLEBAR HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
GRIPS Diamondback Endurance Gel Tape
STEM HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
SEAT WTB Gravelier, Cromoly Rail, 142x250
SEATPOST Kind Shock eTENi 27.2 Dropper, 65mm (XS,SM,MD) 100mm (LG,XL) travel
EXTRAS Tool Kit, Tubeless Valves, Frame / Chainstay Protector
BRAKES SRAM Apex, Flat Mount Hydraulic Disc, w/160mm F / 160mm R, Rotors

Geometry:

FRAME SIZE XS/47CM 5'1"-5'4" SM/50CM 5'4"-5'8" MD/53CM 5'7"-5'10" LG/56CM 5'10"-6'1" XL/59CM 6'1"-6'4"
Rider Height - - - - -
Bike Stand Over Height 680.0 mm 735.0 mm 772.0 mm 800.0 mm 828.0 mm
Bike Seat Tube Length 380.0 mm 450.0 mm 500.0 mm 535.0 mm 565.0 mm
Bike Top Tube Length 520.0 mm 535.0 mm 550.0 mm 575.0 mm 600.0 mm
Bike Head Tube Length 110.0 mm 130.0 mm 145.0 mm 160.0 mm 185.0 mm
Bike Head Angle 69.0 ° 70.0 ° 70.5 ° 71.0 ° 71.0 °
Bike Seat Angle 75.0 ° 75.0 ° 74.0 ° 72.5 ° 72.5 °
Bike Wheel Base 1035.0 mm 1043.0 mm 1045.0 mm 1048.0 mm 1074.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm
Bike Bb Height 278.0 mm 278.5 mm 279.5 mm 279.0 mm 279.0 mm
Bike Bb Drop 75.0 mm 74.5 mm 73.5 mm 73.0 mm 73.0 mm
Bike Stem Length 60.0 mm 60.0 mm 75.0 mm 90.0 mm 90.0 mm
Bike Handlebar Width 380.0 mm 420.0 mm 440.0 mm 440.0 mm 460.0 mm
Bike Crank Length 165.0 mm 170.0 mm 170.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 350.0 mm 350.0 mm 350.0 mm 350.0 mm 350.0 mm
Bike Stack 541.0 mm 562.0 mm 578.0 mm 594.0 mm 617.0 mm
Bike Reach 375.0 mm 383.0 mm 384.0 mm 387.0 mm 405.0 mm
Bike Fork Length 404 mm 404 mm 404 mm 404 mm 404 mm
