Diamondback Yowie 5C Carbon XC Bike

Save 30% Save 30%
Original price $5,550.00
Original price $5,550.00 - Original price $5,550.00
Original price $5,550.00
Current price $3,899.96
$3,899.96 - $3,899.96
Current price $3,899.96
Color: Metallic Mustard Gloss
Size: Small

If you're venturing out to explore the trails, the Yowie Carbon is the carbon XC bike of your dreams. The brand-new Diamondback Yowie Carbon is designed to provide comfort during long rides, featuring 110mm of travel thanks to our Level Link suspension platform and a Fox 34 Performance Float fork with 130mm of travel.

The Sram GX Eagle 1x12 drivetrain offers plenty of gears while maintaining a lightweight and smooth performance. With Sram G2 R hydraulic disc brakes, 29x2.4" Maxxis tires in the front and 2.25" in the rear, and a KS LEV dropper post, you'll have all the tools necessary to keep your adventure going. Get acquainted with the latest addition to the Level Link family – a lightweight, short-travel 29'er.

Components and Specifications:

COMPONENT SPECIFICATION
FRAME Carbon Yowie 29, Monocoque Carbon, 110mm Travel, ISCG-05 Tabs, Boost 148x12mm Maxle Dropout, 1.5" Tapered Headtube, Post Mount Disc Tabs

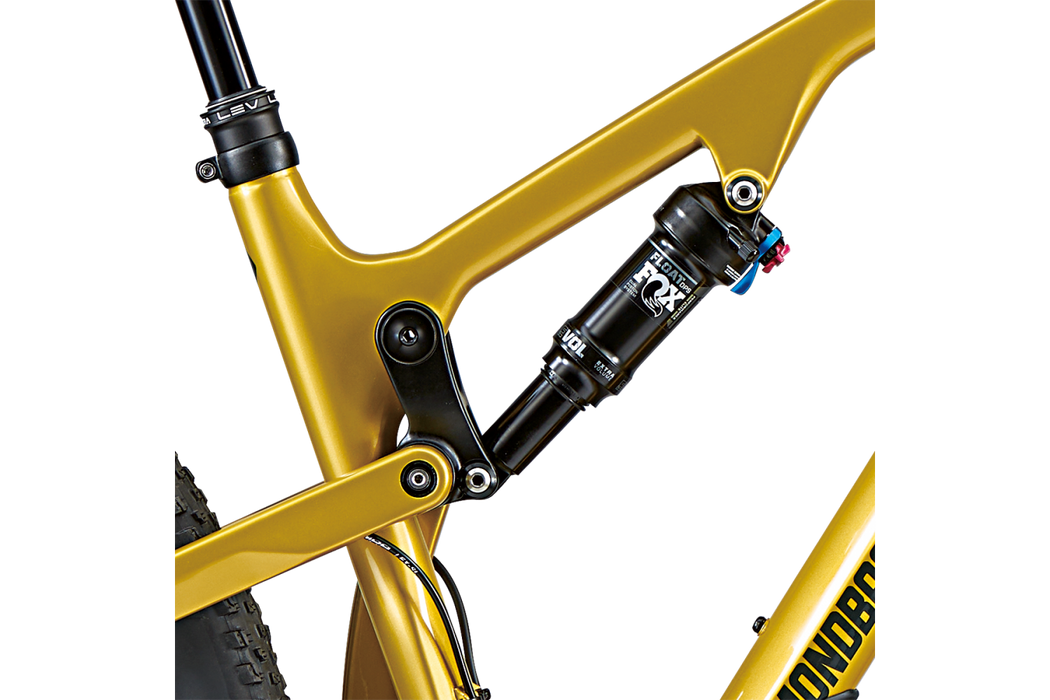

REAR SHOCK Fox DPS Performance Elite Float
FORK Fox 34 Performance Float Grip 3, 130mm of Travel
HEADSET FSA IS-2/42/ACB
CRANKS Sram GX Eagle
SPROCKET 32T Aluminum
BOTTOM BRACKET Sram DUB PF30
FRONT DERAILLEUR N/A

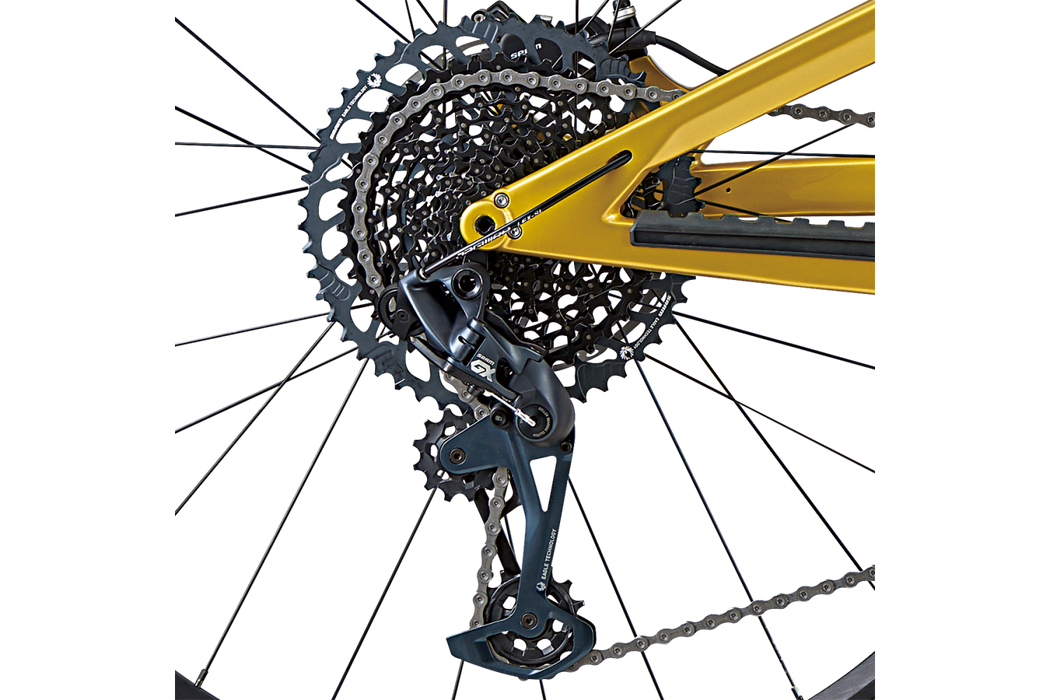

REAR DERAILLEUR Sram GX Eagle, 12 Speed, Long Cage
SHIFTER Sram GX Eagle
COGSET Sram XG-1275, 12 Speed, 10-52 Tooth
CHAIN Sram NX Eagle
FRONT HUB Novatec D791SB-B15, 28h Aluminum, 110x15mm Boost Thru-axle, Sealed Cartridge Bearing
REAR HUB Novatec D902SB-B12-S11, 28h Aluminum, Boost 148x12mm Thru-axle, XD Cassette Body
SPOKES 2.0/1.8/2.0 Butted Stainless Steel
RIMS E*Thirteen TRS Plus, Aluminum 27.5", Tubeless Ready, 27mm internal width, 28h
TIRES Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear, Tubeless Ready
BRAKE LEVERS Sram G2 R
PEDALS DB Aluminum Platform w/Replaceable Pins
HANDLEBAR DB35 Aluminum, 780mm Wide, 20mm Rise, 35mm Bar Bore
GRIPS Ergon GE10 Evo Lock-On
STEM DB35 Aluminum, 35mm Reach, 35mm Bar Bore
SEAT WTB Volt Chromoly SL
SEATPOST KS LEV Integra Internal Dropper, 31.6mm, Travel: XS-100MM, S-125MM, MED-150MM, L-175MM, XL-175MM
EXTRAS Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste
BRAKES Sram G2 R



Geometry:

FRAME SIZE SM/15 5'4" - 5'7" MD/17 5'7" - 5'10" LG/19 5'10" - 6'2" XL/21 6'2" - 6'6"
Rider Height - - - -
Bike Stand Over Height 730.0 mm 730.0 mm 738.0 mm 740.0 mm
Bike Seat Tube Length 383.0 mm 410.0 mm 460.0 mm 485.0 mm
Bike Top Tube Length 592.0 mm 617.0 mm 637.0 mm 660.0 mm
Bike Head Tube Length 90.0 mm 100.0 mm 110.0 mm 120.0 mm
Bike Head Angle 67.0 ° 67.0 ° 67.0 ° 67.0 °
Bike Seat Angle 75.0 ° 75.0 ° 75.0 ° 75.0 °
Bike Wheel Base 1152.0 mm 1176.0 mm 1199.0 mm 1223.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 44.0 mm 44.0 mm 44.0 mm 44.0 mm
Bike Bb Height 336.0 mm 336.0 mm 336.0 mm 336.0 mm
Bike Bb Drop 40.0 mm 40.0 mm 40.0 mm 40.0 mm
Bike Stem Length 35.0 mm 35.0 mm 35.0 mm 35.0 mm
Bike Handlebar Width 780.0 mm 780.0 mm 780.0 mm 780.0 mm
Bike Crank Length 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 435.0 mm 485.0 mm 485.0 mm 485.0 mm
Bike Stack 604.0 mm 613.0 mm 622.0 mm 631.0 mm
Bike Reach 430.0 mm 450.0 mm 470.0 mm 490.0 mm
Bike Fork Travel 130.0 mm 130.0 mm 130.0 mm 130.0 mm
