Diamondback Yowie 3

Original price $4,150.00 - Original price $4,150.00
Original price $4,150.00
$4,150.00 - $4,150.00
Current price $4,150.00
Color: Metallic Olive Gloss
Size: Small

If you're an avid trail explorer, the Yowie is the XC bike of your dreams. Designed for long rides, it offers a comfortable experience with 110mm of travel thanks to our Level Link suspension platform. Plus, the Fox 34 Performance Float fork provides an additional 130mm of travel for tackling diverse terrain.

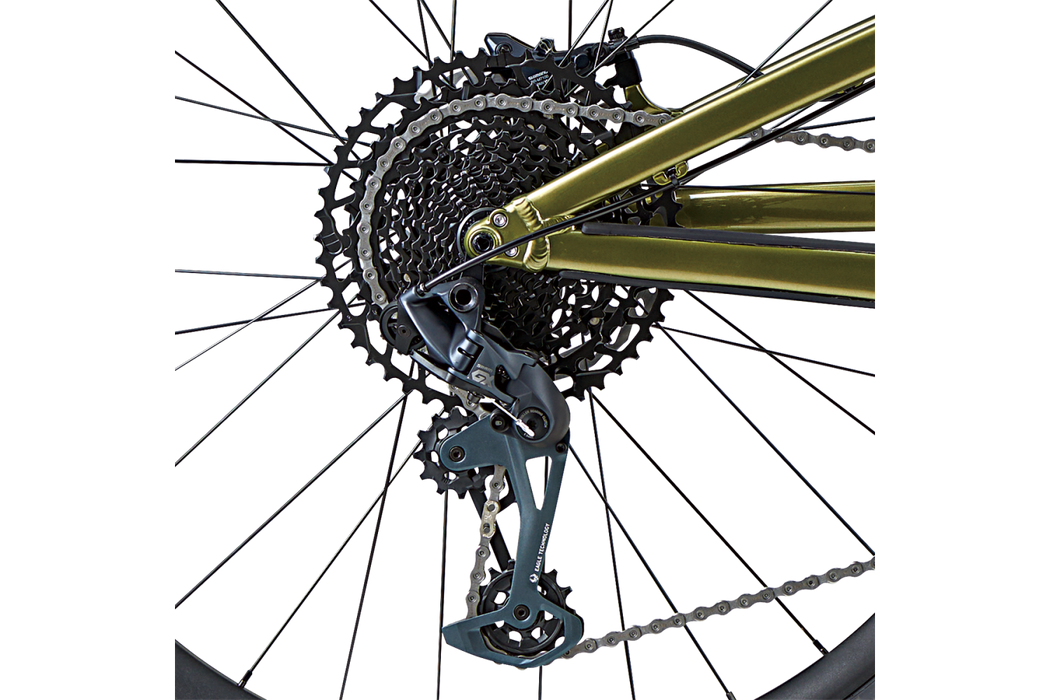

Equipped with a SRAM GX Eagle 1×12 drivetrain, this bike offers a wide range of gears while maintaining a lightweight and smooth performance. The Shimano SLX hydraulic disc brakes ensure reliable stopping power. With 29x2.4" Maxxis tires in the front and 2.25" in the rear, you'll have excellent traction.

To enhance your adventure, the bike features a KS Rage-I dropper post, giving you the flexibility you need for various riding conditions. Meet the newest addition to the Level Link family – a short travel 29'er designed to elevate your trail riding experience.

 Components and Specifications:

FRAME Yowie Alloy 29" Frame, 110mm Travel, Level Link Suspension Platform, ISCG-05 Tabs, Boost 148x12mm Maxle Dropout, 1.5" Tapered Headtube

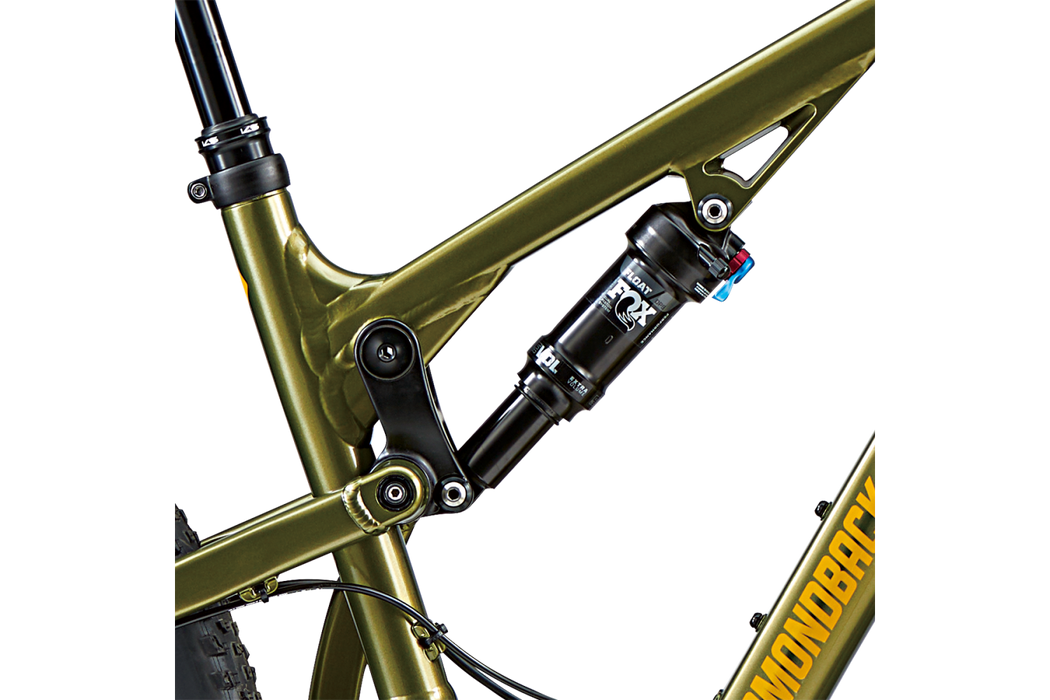

REAR SHOCK Fox DPS Performance Elite Float LV Evol

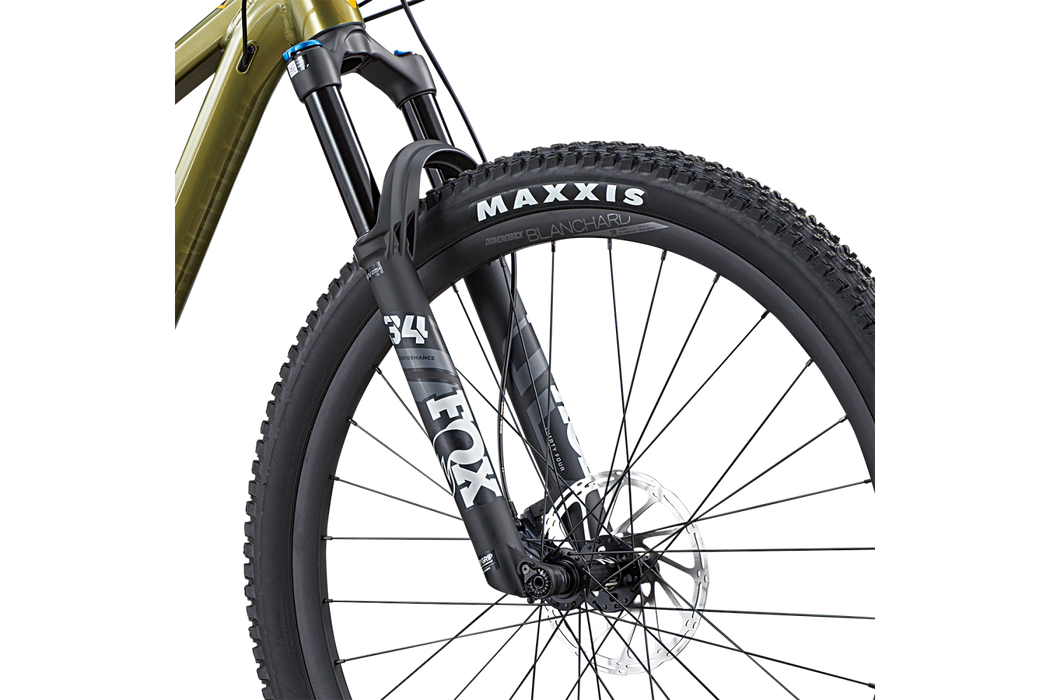

FORK Fox 34 Performance Float, 29", 130mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
HEADSET FSA No. 57 Sealed Cartridge
SPROCKET 32T Aluminum
SHIFTER SRAM GX Eagle, 12 Speed
COGSET SRAM XG Eagle, 10-50T
CHAIN SRAM NX Eagle W/PowerLock
FRONT HUB 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
REAR HUB 32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, XD Cassette
SPOKES Stainless Steel
RIMS Diamondback Blanchard 28R, Taped for Tubeless, 32h
TIRES Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear, both Tubeless Ready
PEDALS DB Aluminum Platform w/Replaceable Pins

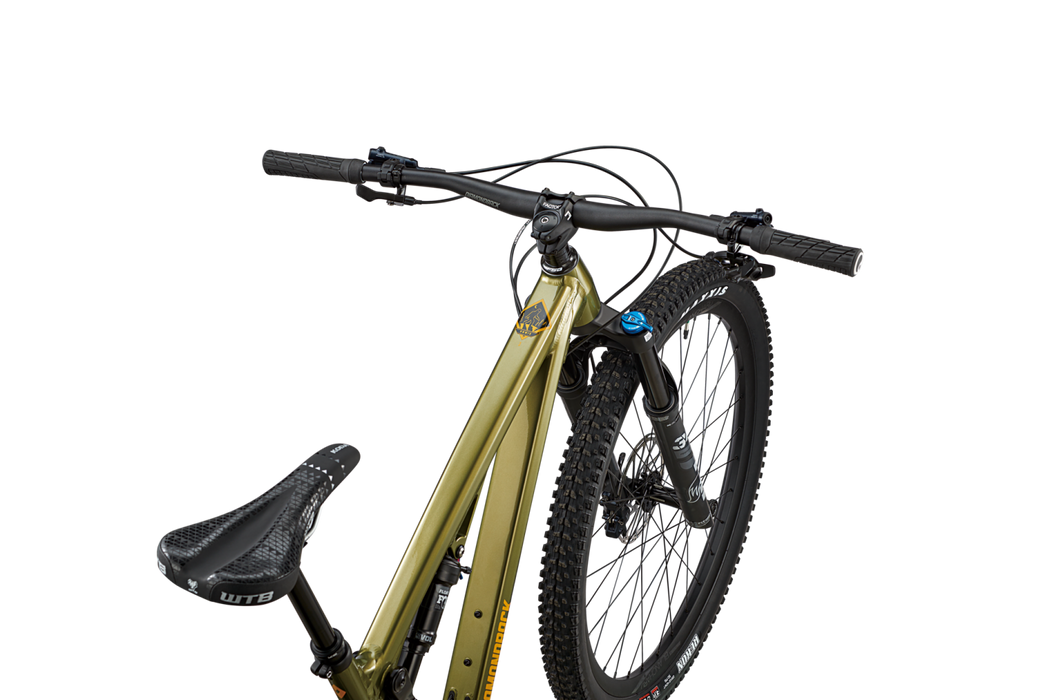

HANDLEBAR DB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore
GRIPS Ergon GE10 Evo Lock-On
STEM DB35 Aluminum 35mm Reach, 35mm Bar Bore

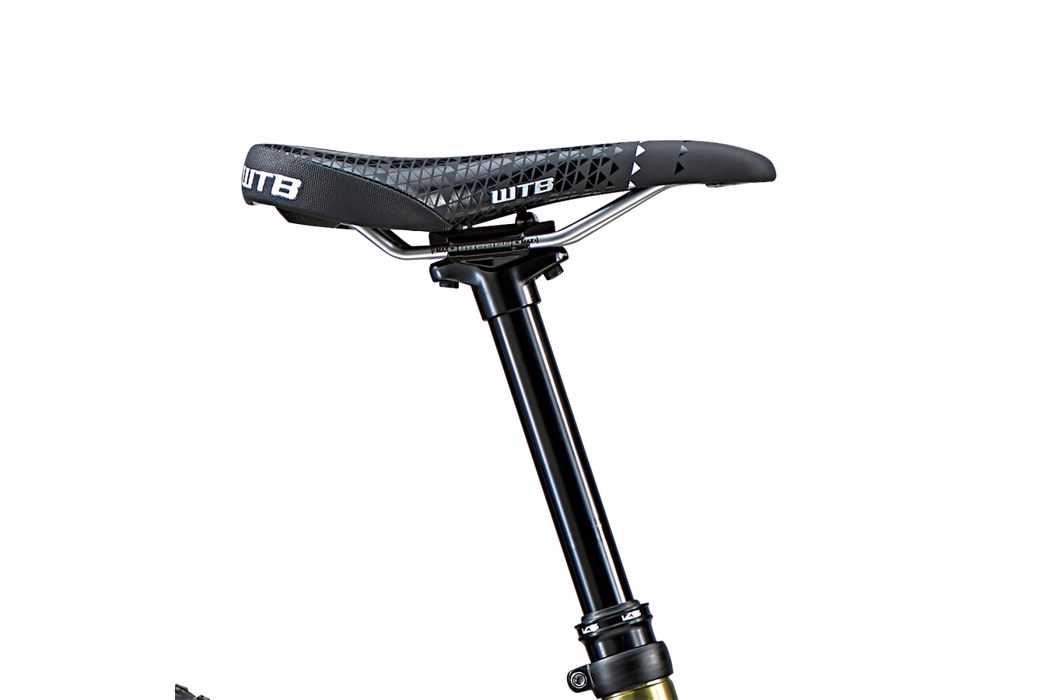

SEAT WTB Koda Race
SEATPOST KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote, Travel XS-75MM, S-100MM, MED-150MM, L-150MM, XL-170MM
EXTRAS Tool Kit, DB Shock Pump, DB Mud Guard, Tubeless Valves
BRAKES Shimano SLX M7100



FRAME SIZE SM/15 5'4" - 5'7" MD/17 5'7" - 5'10" LG/19 5'10" - 6'2" XL/21 6'2" - 6'6"
Rider Height - - - -
Bike Stand Over Height 730.0 mm 730.0 mm 738.0 mm 740.0 mm
Bike Seat Tube Length 383.0 mm 410.0 mm 460.0 mm 485.0 mm
Bike Top Tube Length 592.0 mm 617.0 mm 637.0 mm 660.0 mm
Bike Head Tube Length 90.0 mm 100.0 mm 110.0 mm 120.0 mm
Bike Head Angle 67.0 ° 67.0 ° 67.0 ° 67.0 °
Bike Seat Angle 75.0 ° 75.0 ° 75.0 ° 75.0 °
Bike Wheel Base 1152.0 mm 1176.0 mm 1199.0 mm 1223.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 44.0 mm 44.0 mm 44.0 mm 44.0 mm
Bike Bb Height 336.0 mm 336.0 mm 336.0 mm 336.0 mm
Bike Bb Drop 40.0 mm 40.0 mm 40.0 mm 40.0 mm
Bike Stem Length 35.0 mm 35.0 mm 35.0 mm 35.0 mm
Bike Handlebar Width 780.0 mm 780.0 mm 780.0 mm 780.0 mm
Bike Crank Length 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 435.0 mm 485.0 mm 485.0 mm 485.0 mm
Bike Stack 604.0 mm 613.0 mm 622.0 mm 631.0 mm
Bike Reach 430.0 mm 450.0 mm 470.0 mm 490.0 mm
Bike Fork Travel 130.0 mm 130.0 mm 130.0 mm 130.0 mm
