Diamondback Union 2 Adult Electric Hardtail
The Class 3 Union 2 Diamondback Electric Bike is fully loaded to get things done. Built on a sleek aluminum frame with internal cable routing, this e-Bike is powered by a Bosch Performance Line Speed motor and a Powertube 500Wh battery. The Bosch Kiox on-board computer provides ride data at your fingertips via a handlebar remote and easy-to-read color display. The Kiox is compatible with Bluetooth heart-rate monitors for the ultimate smart eBike experience. A 10-speed Shimano drivetrain fine-tunes your pedaling, while Tektro hydraulic disc brakes keep your speed under control. Wide tires on 27.5-inch wheels take the sting out of rough pavement. With built-in Lezyne lights, an integrated rack, and reflective fenders, the Union 2 lets you cut through city traffic with ease and confidence.
- Bosch Performance Line Speed motor for powerful pedal assistance
- Bosch Powertube 500Wh battery provides up to 65-mile range
- Tektro HD-M735 hydraulic disc brakes for maximum stopping power in any conditions
- Shimano Deore 10-speed drivetrain offers smooth, reliable shifting
- Integrated rack, reflective fenders, and Lezyne lights make getting around town easier, cleaner, and safer.
SPECS
| FRAME | Formed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery |

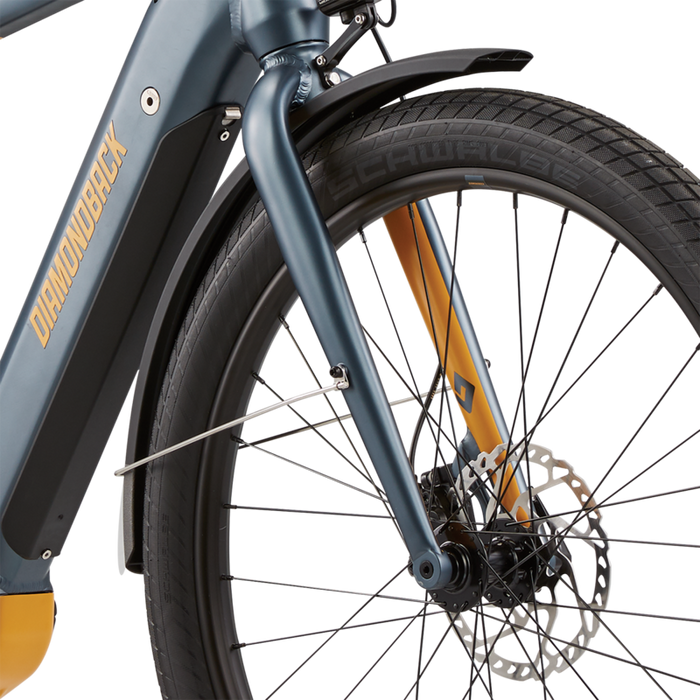

| FORK | Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle |
| HEADSET | Integrated, Sealed Bearing |

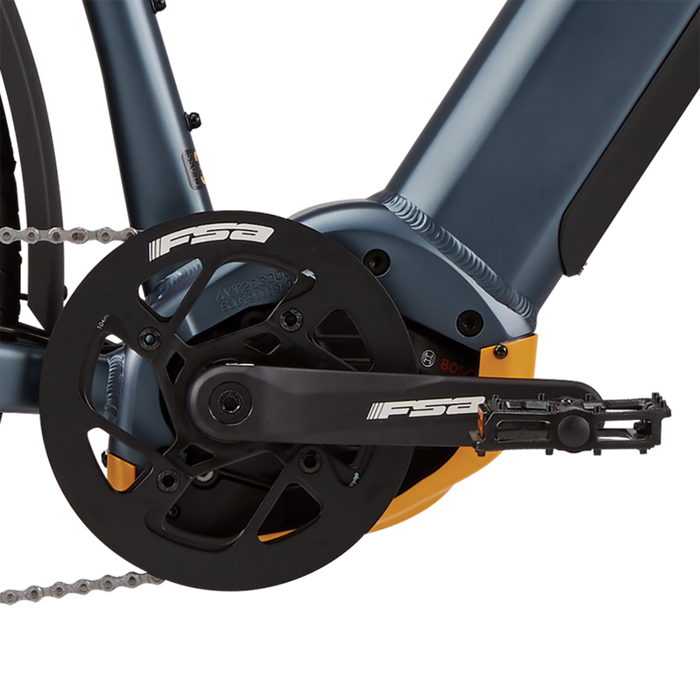

| CRANKS | FSA Forged Aluminum for Bosch System |
| SPROCKET | FSA Forged Spider, 42 tooth w/chainguard, steel |
| FRONT DERAILLEUR | N/A |

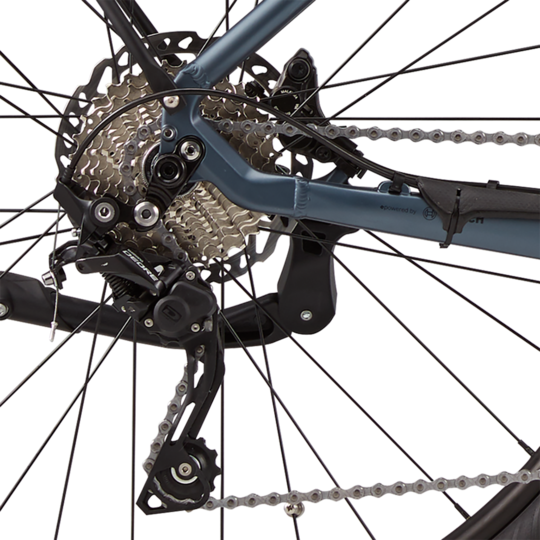

| REAR DERAILLEUR | Shimano Deore M610, SGS |
| SHIFTER | Shimano Deore SL-M6000, 10 Speed |
| COGSET (CASSETTE/FREEWHEEL) | Shimano, 11-32 tooth, 10 Speed |
| CHAIN | KMC x10e EPT, Ebike Specific |
| FRONT HUB | Formula, Sealed Bearing, Thru Axle |
| REAR HUB | Formula, Sealed Bearing, Thru Axle |
| SPOKES | Black w/Silver Nipples |
| RIMS | Aluminum 27.5", Black Anodized, 25mm ID, Disc Specific, 32 Hole |
| TIRES | 27.5" x 2.4" Schwalbe Super Moto |
| BRAKES | Tektro HD-M735, 4 Piston Front 180mm Rotor, 2 Piston Rear 160mm Rotor |
| BRAKE LEVERS | TEKTRO HD-M735, 2 Finger Lever |
| PEDALS | Shoe Friendly Urban Design, Resin Body |
| HANDLEBAR | Aluminum Alloy |
| GRIPS | Ergo Comfort Control |
| STEM | Aluminum Alloy 3d Forged |

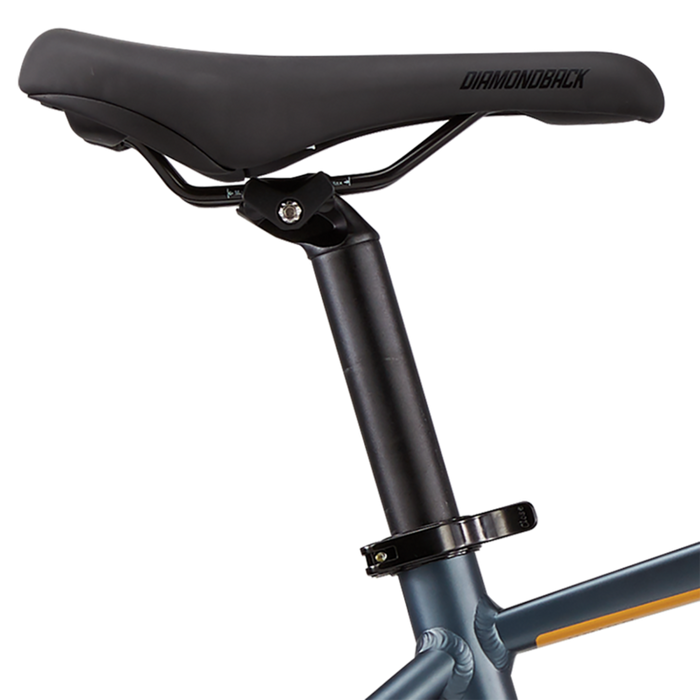

| SEAT | Custom Ergo Performance |
| SEATPOST | Aluminum Alloy Forged Head, 350mm |
| EXTRAS | Aluminum Structural Extrusion Fenders, with Integrated Rear Rack, Lezyne Headlight & Taillight and Rear Mounted Kickstand |
| MOTOR | Bosch Performance Line Speed, 85Nm Torque |
| BATTERY | Bosch PowerTube 500 |
| CHARGER | Bosch 4A |
| DISPLAY | Bosch Kiox |
| MAX ASSISTED SPEED | 28mph |
| RANGE ESTIMATED | 35mi/56km to 65mi/104km |
