FROG BIKES SIMPLE BUILD INSTRUCTIONS
FROG 53 "QUICK START" ASSEMBLY GUIDE
FROG 40 ASSEMBLY VIDEO (Applicable for Frog City 53)
FROG CITY CABLE ROUTING INSTRUCTIONS
Type: Kids • City
Bike: 20" wheels • 18.6 lbs.
Rider: 5-7 years • 43"-58" height
All available colors ship within 2 weeks
SHIPPING CATEGORY
Bike ($34 Ground Shipping)
Contact us by chat, phone, text or email.
Shipping Method determines your shipping timeline:
Shipping Category determines your shipping cost:
* U.S. (Contiguous) only. AK/HI & International shipping available.
We will gladly accept returns of NEW merchandise within 30 days from receiving your order.
FIT: 5-7 year olds with a recommended inseam of 19.3-25.6 inches. See SIZING for more details.

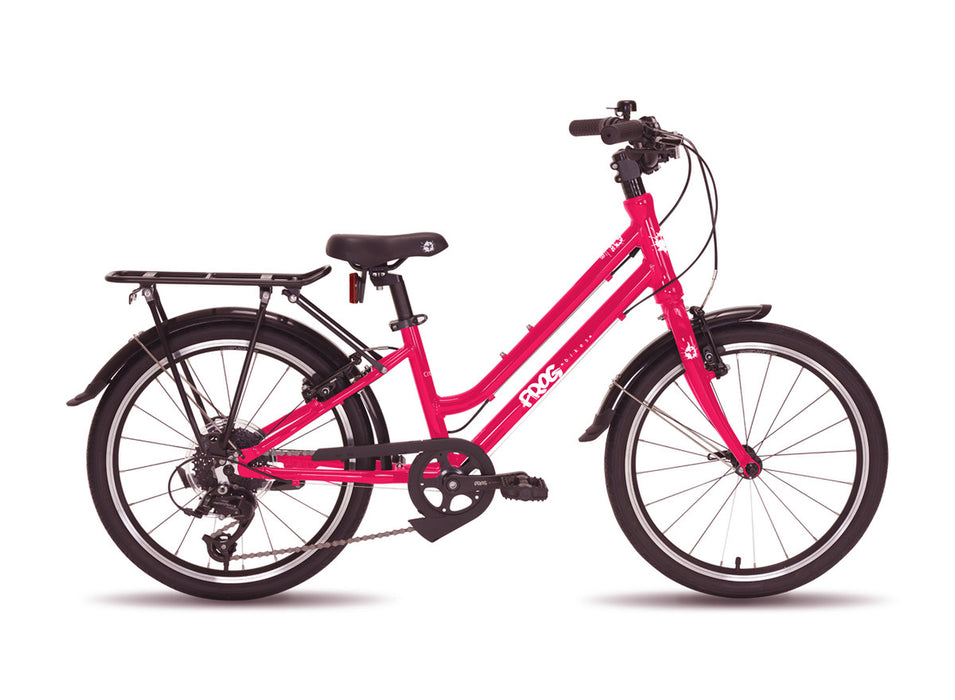

The 20 inch Frog City 53 Bike is the ultimate urban geared bike, suitable for 5 to 7 year olds. This premium children’s city bike is designed for everyday use allowing kids to commute to school or explore the city in comfort and style. It has a lightweight, aluminum step-through frame, weighing just 18.6 lbs. making the bike easy to mount and dismount and handle around town.
With this versatile city bike, kids will enjoy a more upright leisurely riding position, owing to a longer head tube and raised slightly swept handlebars. It is also equipped with 8-speed derailleur gears that provide more range for moderate speeds, and a floating chain glider to prevent clothing from getting stuck and the chain from getting dirty.
This urban kids bike comes with low-resistance Kenda city tires perfect for riding on concrete, full-length mudguards to keep clothes protected, a kickstand so that the bike is easy to park, and a pannier rack, for transporting books and equipment. And, it features Frog's patented cranks, for more efficient pedaling.
WHEEL SIZE | 20" |
RIDER HEIGHT | 43" - 58" |
RIDER AGE | 5 - 7 years |
MINIMUM INSEAM* (Beginner / Experienced Rider) | 20.9" / 19.3" |
MAXIMUM INSEAM (Experienced Rider) | 25.6" |
SEAT HEIGHT | 21.4" - 27.0" |
STANDOVER HEIGHT† | Coming soon |
BIKE WEIGHT (with Pedals) | 18.6 lbs. |
* MINIMUM INSEAM measurement for a child who is large enough to ride this bike. Beginner (or timid) riders must reach the ground comfortably and flat footed while straddling the seat, meaning their inseam must be close to the minimum seat height. Experienced (or confident) riders will be more comfortable raising their heels off the ground when straddling the seat. See Kids Bike Sizing Guide.
† STANDOVER HEIGHT is measured from the top of the top tube to the ground, passing directly by the front of the chainring.
Getting your kid on the right size bike is important and easy! All you need is:
With these two pieces of information, you can easily calculate the MINIMUM SEAT HEIGHT your child needs on their new bike.
See our Kids Bike Sizing Guide for more details. And see Choosing the Best Bike for YOUR Child for our comprehensive guide to find your kid's next bike!
If you do have any further questions or concerns about sizing, please contact us and one of our Kids Bike Experts would be happy to help!
PRODUCT SAFETY CERTIFICATION | ISO 4210 CPSC 1512 (CFR1512) |
WEIGHT | 18.6 lbs. (with pedals) 21.4 lbs. (with pedals and accessories) |
FRAME | 6061 T6 heat treated aluminum alloy Seat tube 11" (280mm) |
FORK | 6061 T6 heat treated aluminum alloy |
FRONT HUB | Quando, Aluminum, Sealed hub, Quick release, 20 hole |
REAR HUB | Quando, Aluminum, Sealed hub, Quick release, 20 hole, Shimano type 8/9 speed free hub body |
CASSETTE / FREE WHEEL | 8-speed, 11-32t |
REAR DERAILLEUR | Shimano Altus, M310, 8-speed OR Microshift, Mezzo, RD-M36S, short cage, 8-speed |
RIM | Aluminum, 20", Double wall, Machined braking surface |
SEAT CLAMP | Aluminum, Quick release |
HEADSET | Neco, 1-1/8" semi-integrated threadless, Frog Bikes top cap |
STEM | Aluminum, 1-1/8", 38mm, 4 bolt clamp |
GRIPS / BAR TAPE | Frog Bikes specific, Lock on, Slim grips |

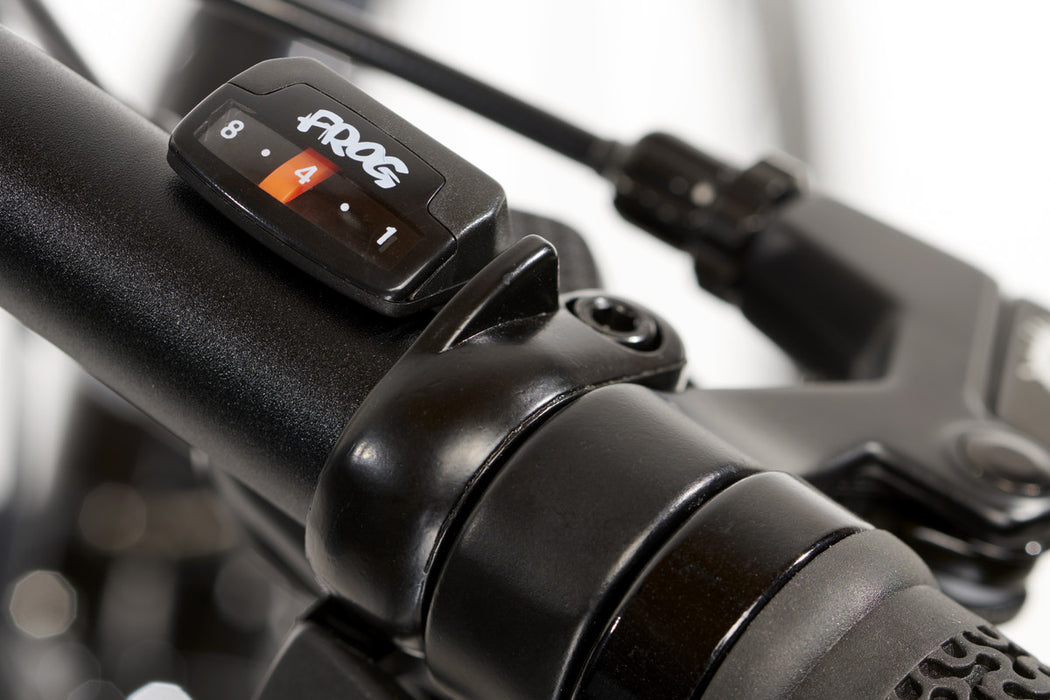

GEAR SHIFTER | FrogFit Technology youth-specific 8-speed with short lever travel and ultra slick gear cable |
BRAKES | Tektro 836AL, Aluminum, Linear pull |
TIRES | Kenda K154, 20" x 1.5", City, ETRTO/ISO: 38-406 |
MUDGUARDS | Full length, Resin, Black, Includes mounting hardware |
ACCESSORIES BOX | Black bell, Bike reflectors white/red, Wheel reflectors white, Paint plasters, Frame protector patches |
CRANK SET / CHAIN RING | Frog Bikes Patented, 114mm, Aluminum straight arm cranks, 32T chainring, Black |
BOTTOM BRACKET | Thun Shorty-ML-SL, Square taper, 68/113.5 |
PEDALS | Frog Bikes, Eco-friendly rice husk & plastic composite, 9/16" thread, Reflectors |
CHAIN | KMC, 8-speed |

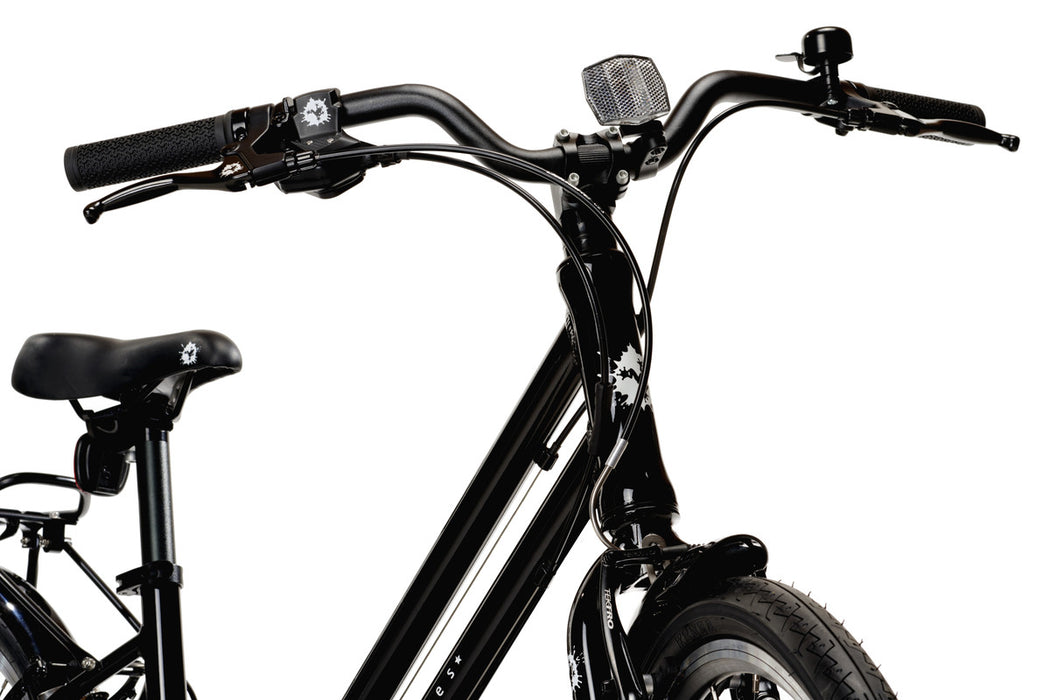

HANDLEBAR | Aluminium, 540mm width, 60mm rise, 25 degree sweep |
BRAKE LEVERS | Tektro JL510, Aluminum, Easy reach |
SADDLE | Frog Bikes child-specific saddle (small), Steel rails |
ENCLOSED TOOLS | 4mm allen |
REQUIRED TOOLS | Scissors, Phillips head screwdriver, 15mm spanner or adjustable wrench (helpful but not required) |

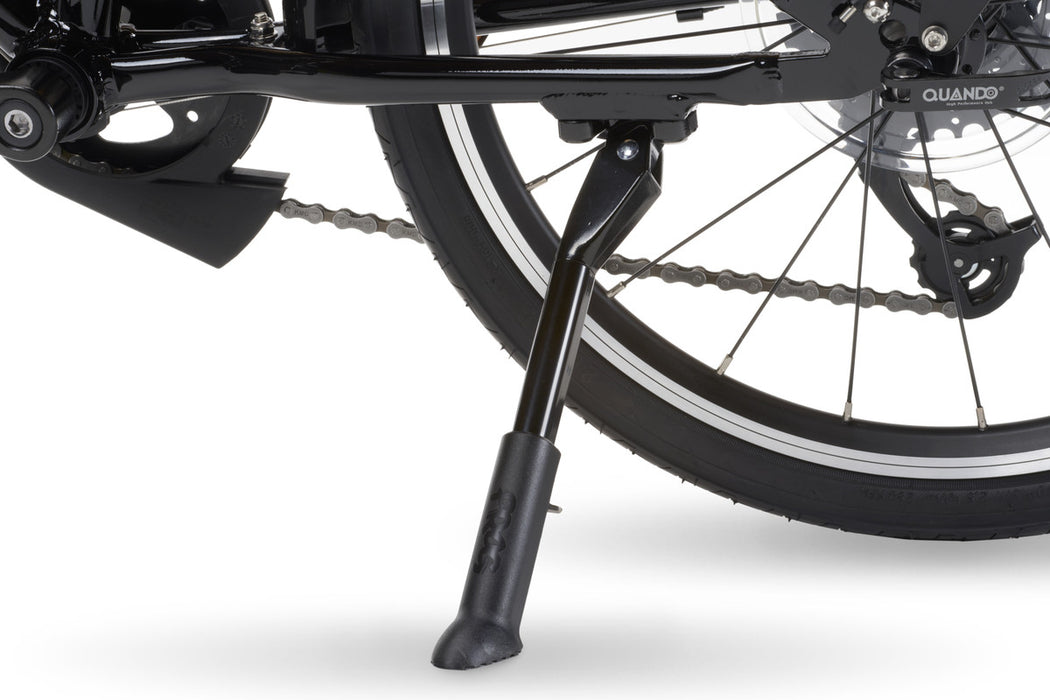

KICKSTAND | Included |

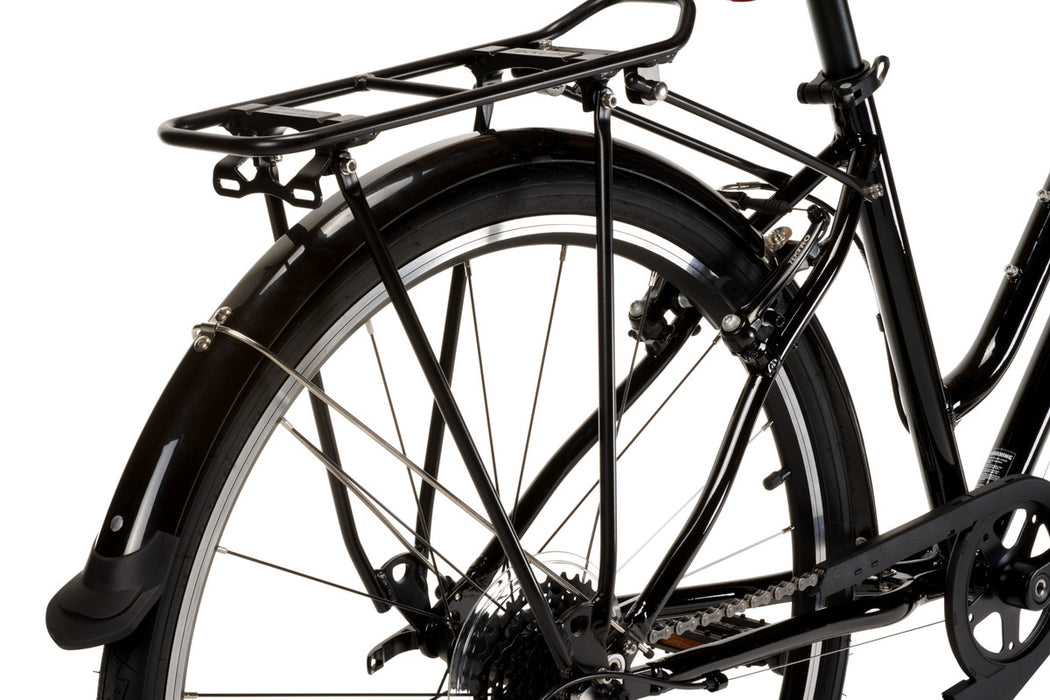

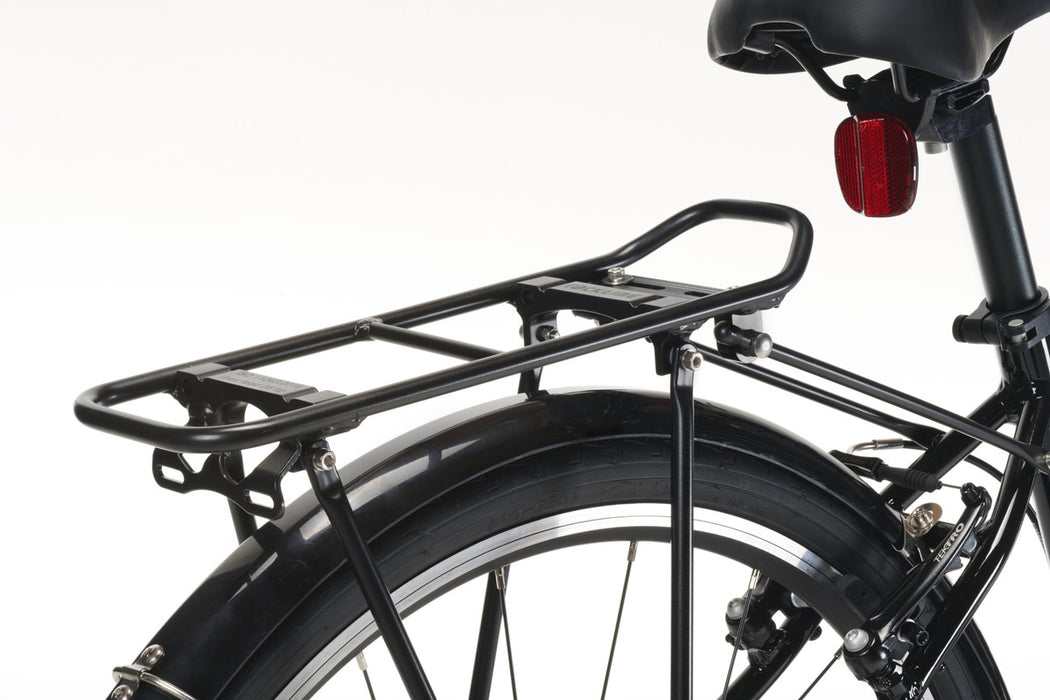

PANNIER RACK | Included, Rated to hold 55 lbs. |
BOTTLES & CAGES | This bike has braze-ons (mounting screws/holes) Compatible with all water bottles & cages (Side load cages are recommended due to smaller frame) |
TRAINING WHEELS | Not compatible with training wheels |
A | Wheelbase (mm) | 870 |
B | Seat Tube Angle (Degrees) | 74 |
C | Head Tube Angle (Degrees) | 71 |
D | Effective Top Tube (mm) | 444.5 |
E | Head Tube Length (mm) | 170 |
F | Chain Stay Length (mm) | 370 |
G | Seat Tube Length (mm) | 280 |
H | BB to Floor (mm) | 216 |
Our "Ride Happy" Guarantee: We want you to love your purchase, but if you are not completely satisfied, we offer hassle-free returns on all orders.
You have 30 days from receiving your order to initiate your return with us:
If you'd like to return your order, please start here.
Ready Set Pedal stands behind all products we sell. Most of our brands (including all bikes) offer a limited warranty. We will work directly with the manufacturer (on your behalf) to evaluate and process your warranty claim. If the issue/defect is deemed eligible to be covered under warranty, we work to get you a replacement, repair or refund as quickly as possible. If you're experiencing an issue/defect with an order, please contact us for support.
Frog offers a standard 2 year warranty on all frames, forks, parts and paintwork (excluding tires & inner tubes). Register here for Frog's FREE extended Warranty Plus, which offers a 10 year warranty on frames, handlebars, stems, seat posts, cranks and forks (excluding suspension forks). You must complete and submit the Warranty Plus application form within 28 days of purchase.
Suspension forks come with a standard warranty of 2 years and are not included in the Warranty Plus offer.
Frog offers a standard 2 year warranty on all frames, forks, parts and paintwork (excluding tires & tubes). Register for Frog's FREE extended Warranty Plus, which offers a 10 year warranty on frames, handlebars, stems, seat posts, cranks and forks (excluding suspension forks).
Your bike arrives 90% assembled. Ready Set Pedal tunes and inspects every Frog Bike to ensure quality and make your final assembly as easy as possible. Follow our "Quick Start Assembly Guide" to be riding in 15 minutes.
