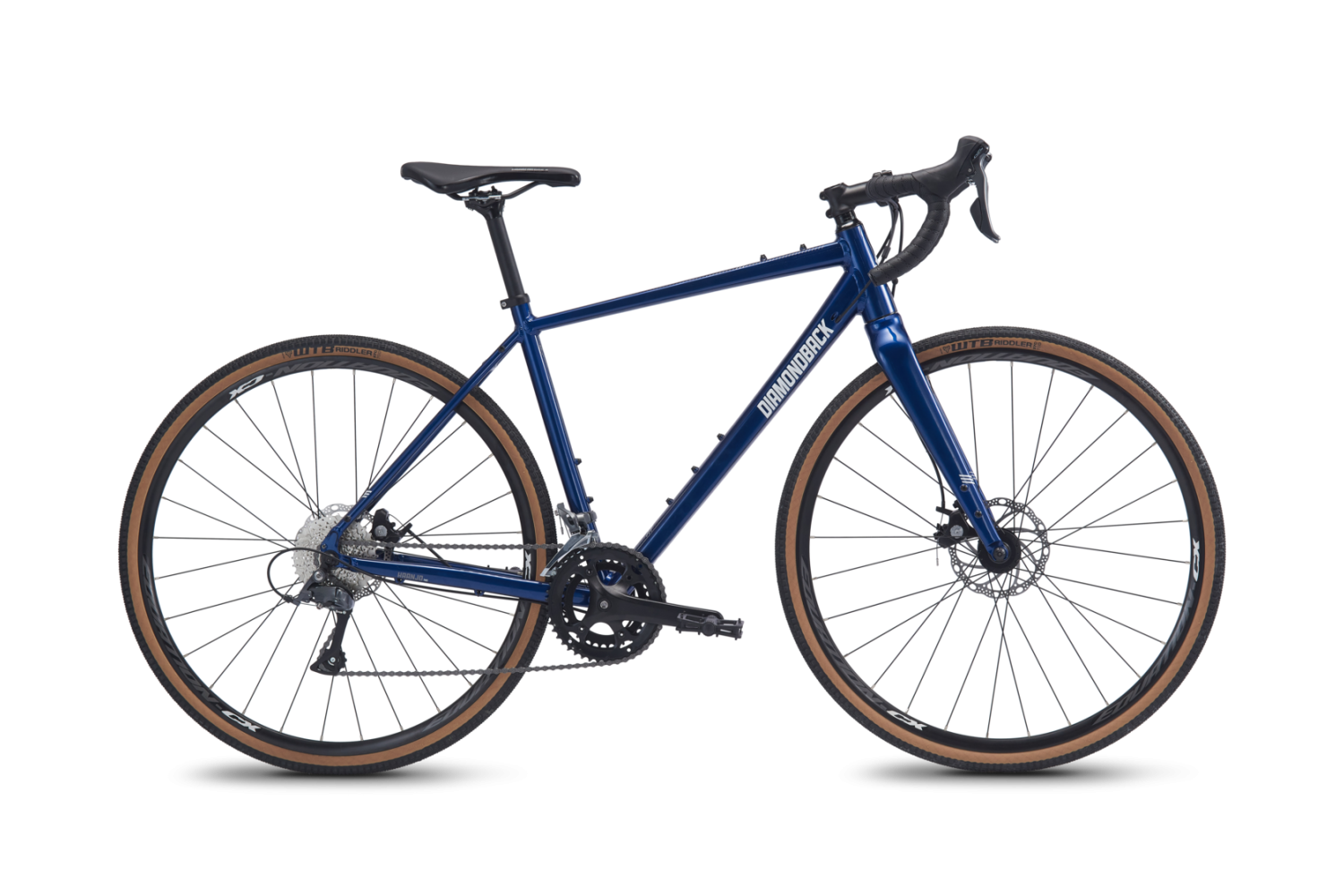

Diamondback Haanjo 2 Gravel Bike

Save 30% Save 30%
Original price $1,000.00
Original price $1,000.00 - Original price $1,000.00
Original price $1,000.00
Current price $699.96
$699.96 - $699.96
Current price $699.96
Color: Dark Blue Gloss
Size: Small

For most of us, having the space for a vast collection of bikes is a luxury we don't possess. However, the allure of versatility is undeniable. Fortunately, if you own the Diamondback Haanjo 2, you won't find yourself in need of a whole fleet of bikes. Whether you're planning a touring adventure and need to carry your gear around town and campus, or you simply seek a fast and dependable commuter bike, the Haanjo 2 has you covered. It features front and rear rack mounts for your touring escapades and fender mounts to keep you pedaling to work even when the weather turns gloomy – no need for those minivans that others resort to.

Equipped with wide WTB 700×37c tires to smooth out rough roads, the Haanjo 2 effortlessly transitions into a lively and capable road bike. It's agile, responsive, and surprisingly comfortable for those all-day rides that demand both speed and comfort.


 Components and Specifications:

DESCRIPTION
FRAME

DB Alloy Gravel Frame, Endurance Geometry,

Fully Butted 6061-T6 Alloy, Formed Top Tube,

1 1/8" Headtube, Flat mount Disc, QR Drop out,

Top Tube Bag Mounts, w/Replaceable Hanger

FORK

DB Aluminum Gravel Disc, 1-1/8"

Steerer Tube, w/Fender and Low Rider Mounts

HEADSET FSA No.42B, Sealed Cartridge
CRANKS Alloy, Compact Cross, 46/34T
BOTTOM BRACKET Steel Cartridge
FRONT DERAILLEUR Shimano Claris FD-2000, 31.8mm Band Clamp
REAR DERAILLEUR Shimano Claris RD-2000, 8 Speed, GS
SHIFTER Shimano Claris ST-2000 STI, 2x8 Speed
COGSET Shimano HG50 Cassette, 8 Speed, 11-32T
CHAIN KMC Z8, 8 Speed
FRONT HUB 28h Alloy Quick Release
REAR HUB 28h Alloy Quick Release, Cassette
SPOKES 14g Stainless Steel
RIMS Diamondback Equation CX, 28h, Doublewall
TIRES WTB Riddler Comp, 700x37c, 30TPI
BRAKE LEVERS Shimano Claris ST-2000
PEDALS DB Platform
HANDLEBAR

DB Gravel, 6061 Alloy,

12 Degree Flare, 31.8mm Bar Bore

GRIPS Diamondback Endurance Gel Tape
STEM

DB 6061 Alloy,

3D Forged, +/-7° Rise, 31.8mm Bar Bore

SEAT Diamondback Performance Gravel Road
SEATPOST DB Alloy, Micro Adjust, 27.2mm
EXTRAS Tool Kit
BRAKES

Tektro MD-C310 Flat Mount Mechanical Disc,

w/160mm Front / 140mm Rear Rotors



 Geometry:

+---------+---------------+
| Size | Height Range |
+---------+---------------+
| XS/47cm | 5'1"-5'4" |
| SM/50cm | 5'4"-5'8" |
| MD/53cm | 5'7"-5'10" |
| LG/56cm | 5'10"-6'1" |
| XL/59cm | 6'1"-6'4" |
+---------+---------------+



FRAME SIZE XS/47CM 5'1"-5'4" SM/50CM 5'4"-5'8" MD/53CM 5'7"-5'10" LG/56CM 5'10"-6'1" XL/59CM 6'1"-6'4"
Rider Height - - - - -
Bike Stand Over Height 680.0 mm 735.0 mm 772.0 mm 800.0 mm 828.0 mm
Bike Seat Tube Length 380.0 mm 450.0 mm 500.0 mm 535.0 mm 565.0 mm
Bike Top Tube Length 520.0 mm 535.0 mm 550.0 mm 575.0 mm 600.0 mm
Bike Head Tube Length 110.0 mm 130.0 mm 145.0 mm 160.0 mm 185.0 mm
Bike Head Angle 69.0 ° 70.0 ° 70.5 ° 71.0 ° 71.0 °
Bike Seat Angle 75.0 ° 75.0 ° 74.0 ° 72.5 ° 72.5 °
Bike Wheel Base 1035.0 mm 1043.0 mm 1045.0 mm 1048.0 mm 1074.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm
Bike Bb Height 278.0 mm 278.5 mm 279.5 mm 279.0 mm 279.0 mm
Bike Bb Drop 75.0 mm 74.5 mm 73.5 mm 73.0 mm 73.0 mm
Bike Stem Length 60.0 mm 60.0 mm 75.0 mm 90.0 mm 90.0 mm
Bike Handlebar Width 380.0 mm 420.0 mm 440.0 mm 440.0 mm 460.0 mm
Bike Crank Length 165.0 mm 170.0 mm 170.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 350.0 mm 350.0 mm 350.0 mm 350.0 mm 350.0 mm
Bike Stack 541.0 mm 562.0 mm 578.0 mm 594.0 mm 617.0 mm
Bike Reach 375.0 mm 383.0 mm 384.0 mm 387.0 mm 405.0 mm
Bike Fork Length 404 mm 404 mm 404 mm 404 mm 404 mm
