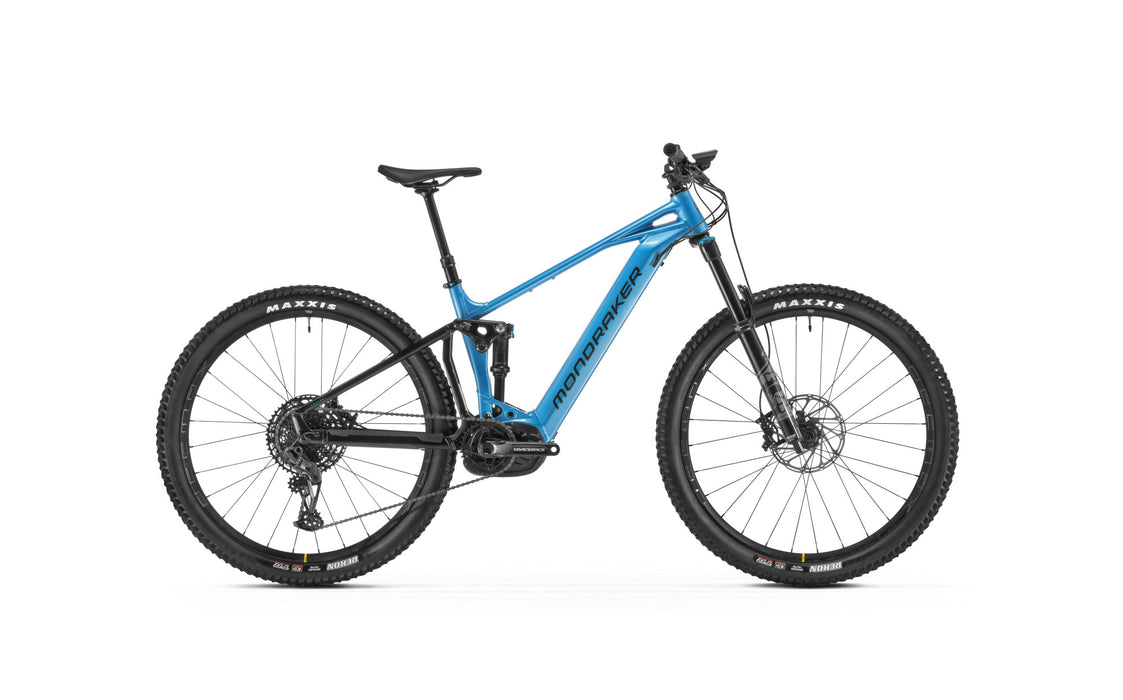

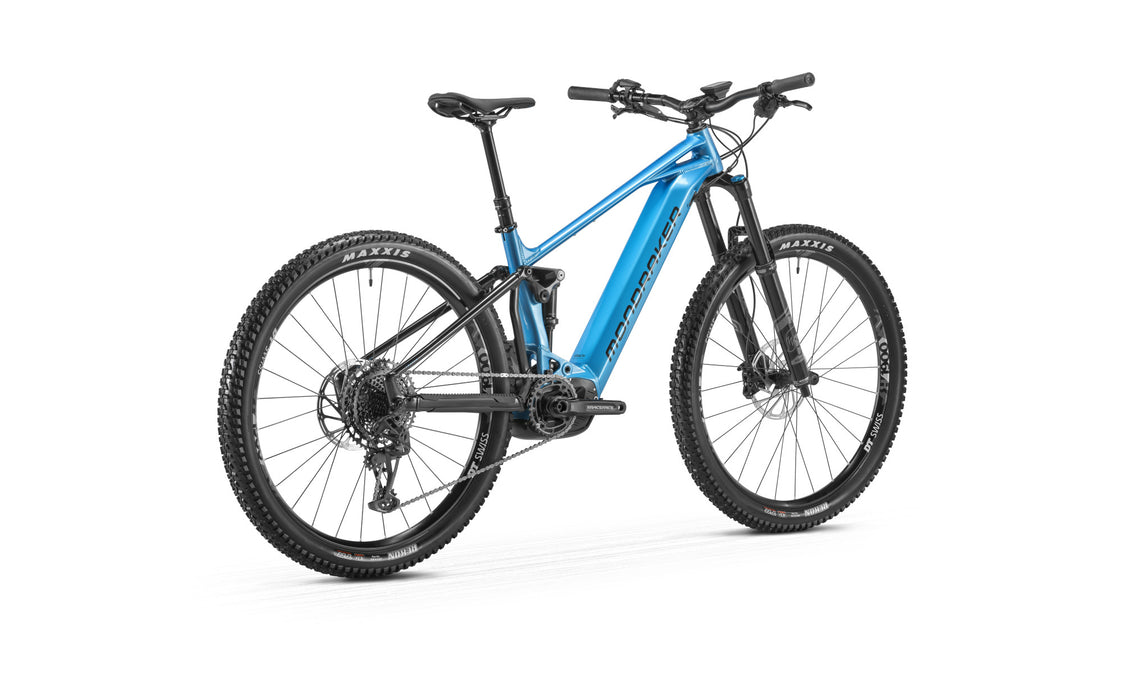

Mondraker Chaser R Electric Enduro

Get ready to experience the thrill with the Chaser R 29 e-MTB bike designed for enduro, trail and all-mountain riding! This top-end emountain bike with enhanced performance and modern geometry is a beauty to show off. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Unleash the power of the upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar-mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.
2022 Upgrades
-
Performance Line CX is sporty and economical and offers the benefits of increased torque for eMountain biking, intuitive handling for switching between riding modes, maximum agility on rigorous trails, and riding modes for personalized ride management.
- Powertube 750 provides a reliable power source for extended driving distances.
- LED Remote acts as a fully connected control center for optimal readability, smart connectivity, smart walk assist, ergonomic handling, and sustainability on the move.
- KIOX 300 display supports fun features, easy to read, sleek design, positioning flexibility, and helpful support.
- eBike Flow App helps with personalizing your ride with enhancement features, recording activities, customization of riding modes, and other upgraded features.
Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME |
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
REAR SHOCK |
Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
SHOCK SETTINGS |
Light compression, Light rebound, 1 Token |
FORK |
Fox 36 29 Float FIT GRIP EVOL Rythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm oset. Settings: sweep adjust compression, Low-speed rebound, air preload |
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45° |
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
SADDLE |
FIZIK Terra Aidon X5 145mm |
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
BRAKE LEVER |
Sram G2 R, tool-free reach adjust |
RIMS |
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
SPOKES |
Mavic J-bend duble butted, contactless lacing |
FRONT HUB |
Mavic, Boost 15x110mm, IS 6 bolts |
REAR HUB |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
FRONT TIRE |
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
REAR TIRE |
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
CRANKSET |
Race Face Aeffect ebike, 165mm |
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
BOTTOM BRACKET |
- |
PEDALS |
- |
CHAIN |
Sram SX Eagle, 12s, Powerlock |
FRONT DERAILLEUR |
- |
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
CASSETTE |
Sram PG-1210, 11-50T, 12s |
MOTOR |
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
BATTERY |
Bosch Powertube 750Wh |
DISPLAY |
Bosch Kiox 300 |
DERAILLEUR HANGER |
Mondraker M068 |
OTHERS |
- |
WEIGHT |
- |
Size |
S |
M |
L |
XL |
|
A |
Seat Tube Length |
380 mm |
420 mm |
450 mm |
490 mm |
B |
Top Tube Length |
605 mm |
625 mm |
650 mm |
670 mm |
C |
Bottom Bracket Drop |
-25 mm |
-25 mm |
-25 mm |
-25 mm |
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73.5° |
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
H |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
J |
Wheelbase |
1225 mm |
1245 mm |
1265 mm |
1285 mm |
K |
Head Tube Length |
110 mm |
110 mm |
130 mm |
130 mm |
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
M |
Stack |
622 mm |
622 mm |
640 mm |
640 mm |
