Diamondback Metric 1 City Bike
The City Bike, known as the Diamondback Metric 1, strikes a balance between the agility of a lightweight road bike and the stability of a mountain bike, allowing for a more upright riding position. It excels as a commuter bike or a city bike, catering to various riding needs. Whether you seek an enjoyable journey along the local greenway or a reliable means of transportation to work or campus the Metric 1 is the ideal companion.
The Diamondback Metric's 700c wheels and custom alloy frame ensure a swift and efficient ride, while the flat handlebars provide the stability reminiscent of a mountain bike. This versatile street bike boasts 35c tires that offer both speed and a smooth ride, capable of conquering any pavement obstacles. With its Shimano Acera 8-speed drivetrain, rack and fender mounts, and durable double wall wheels, you'll always be prepared for your next adventure on this City Bike.
Components and Specifications:
| COMPONENT | SPECIFICATION |
|---|---|
| FRAME | Custom Formed AL-6061 Heat Treated Aluminum Tubing, 700c Sport Fitness Geometry |

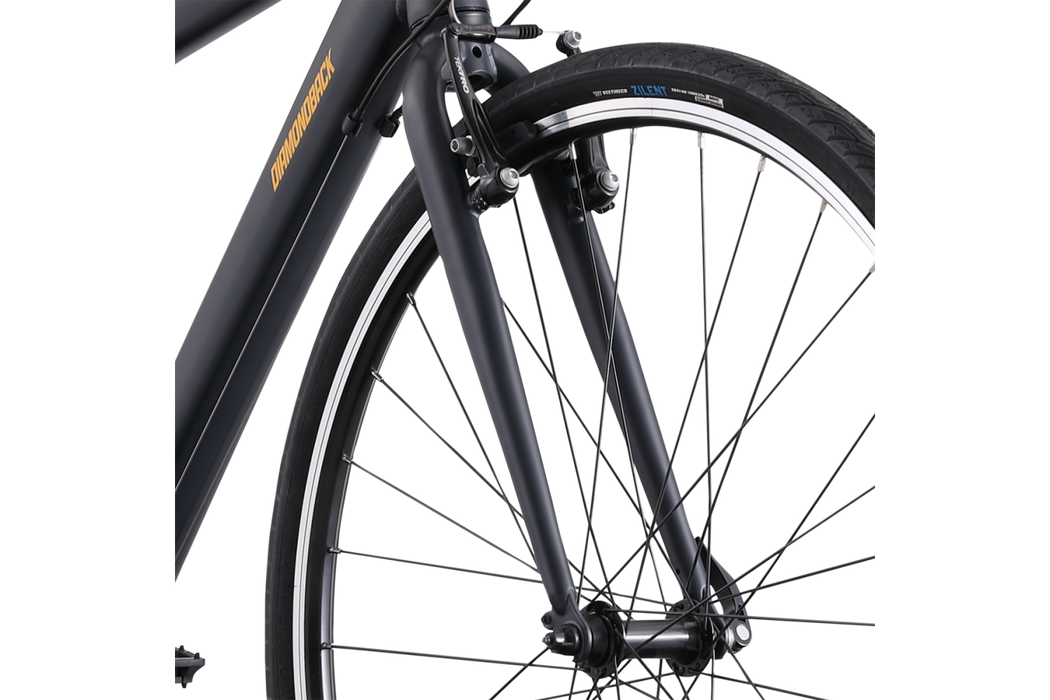

| FORK | Steel with Die Cast Drop Outs |
| HEADSET | Integrated 1-1/8" |

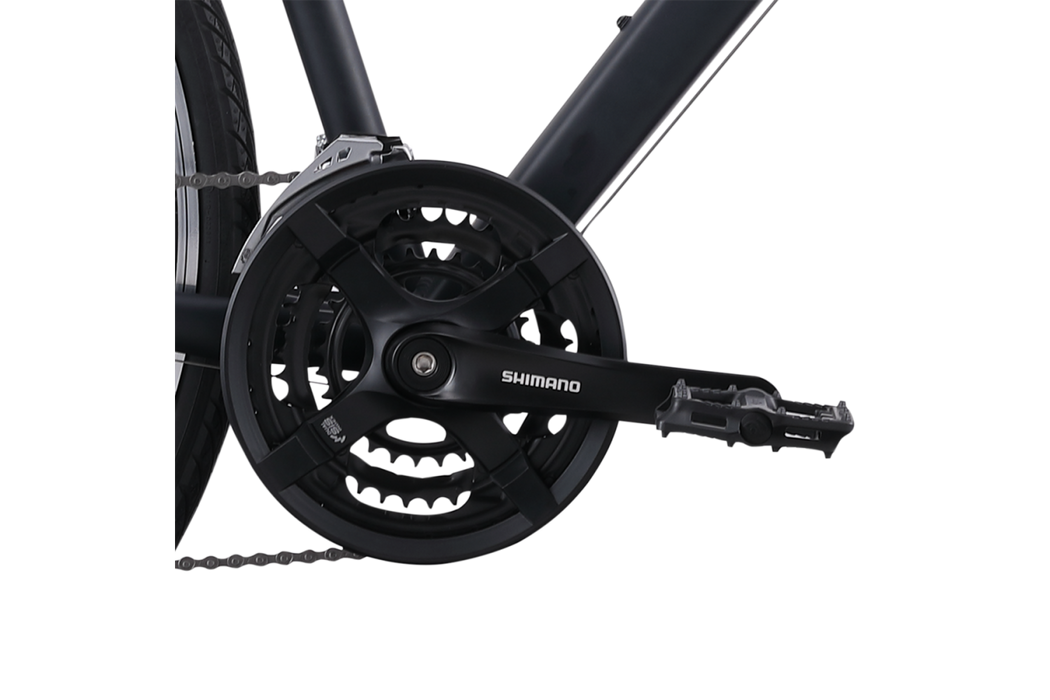

| CRANKS | Shimano Tourney TY501 w/ Chainguard, 48/38/28T |
| BOTTOM BRACKET | Sealed Cartridge Bearing |
| FRONT DERAILLEUR | Shimano Tourney TY710, Top Swing, Dual Pull |

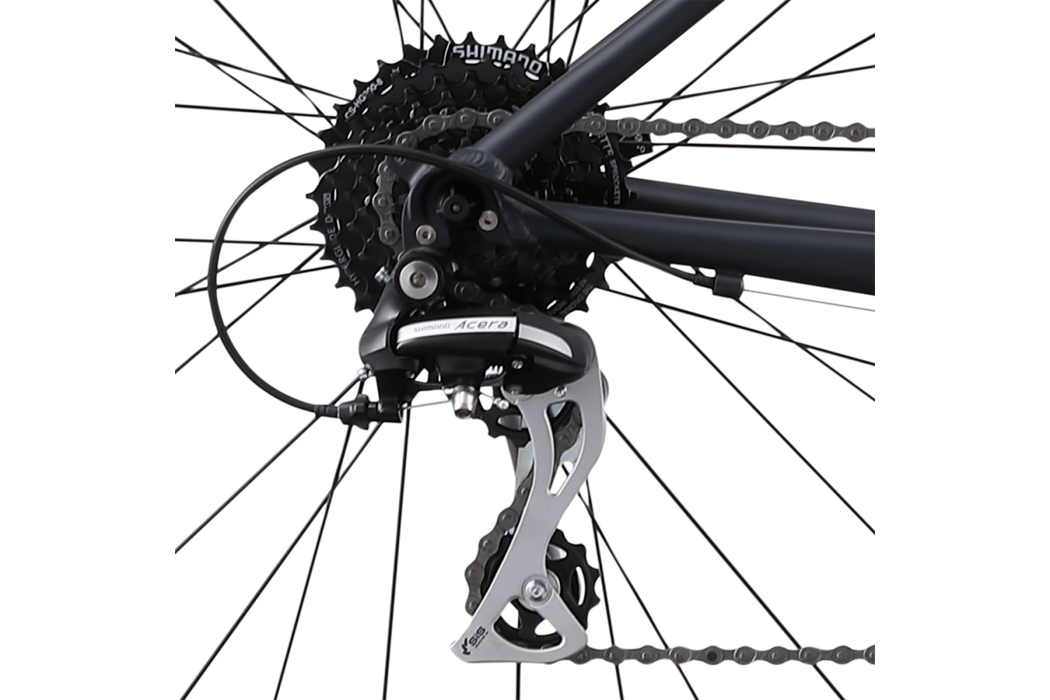

| REAR DERAILLEUR | Shimano Acera M360 8 Speed |

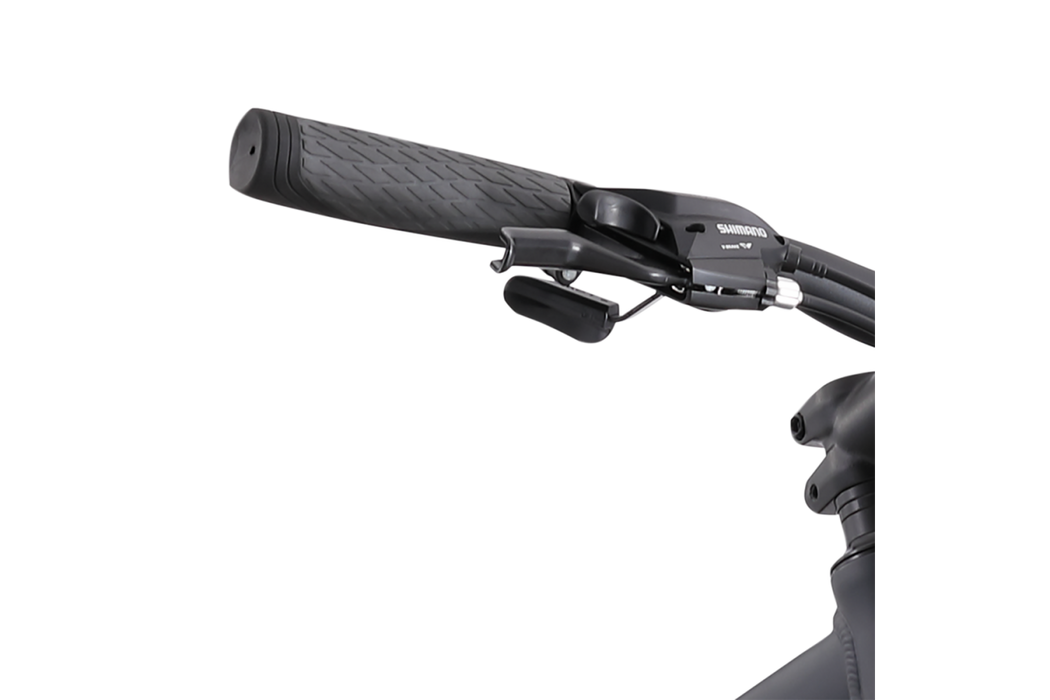

| SHIFTER | Shimano EZ Fire EF60 3x8 Speed |
| COGSET | Shimano HG200 8 Speed Cassette (12-32t) |
| CHAIN | KMC Z8 |
| FRONT HUB | Formula Aluminum Quick Release, 32-hole |
| REAR HUB | Formula Aluminum Quick Release, 32-hole |
| SPOKES | 14g Stainless Steel |
| RIMS | Aluminum Double Wall with CNC Side Wall 32h |
| TIRES | Vee Tire Zilent 700x35c |
| BRAKE LEVERS | Shimano 4-Finger |
| PEDALS | Aluminum Body/Steel Cage |

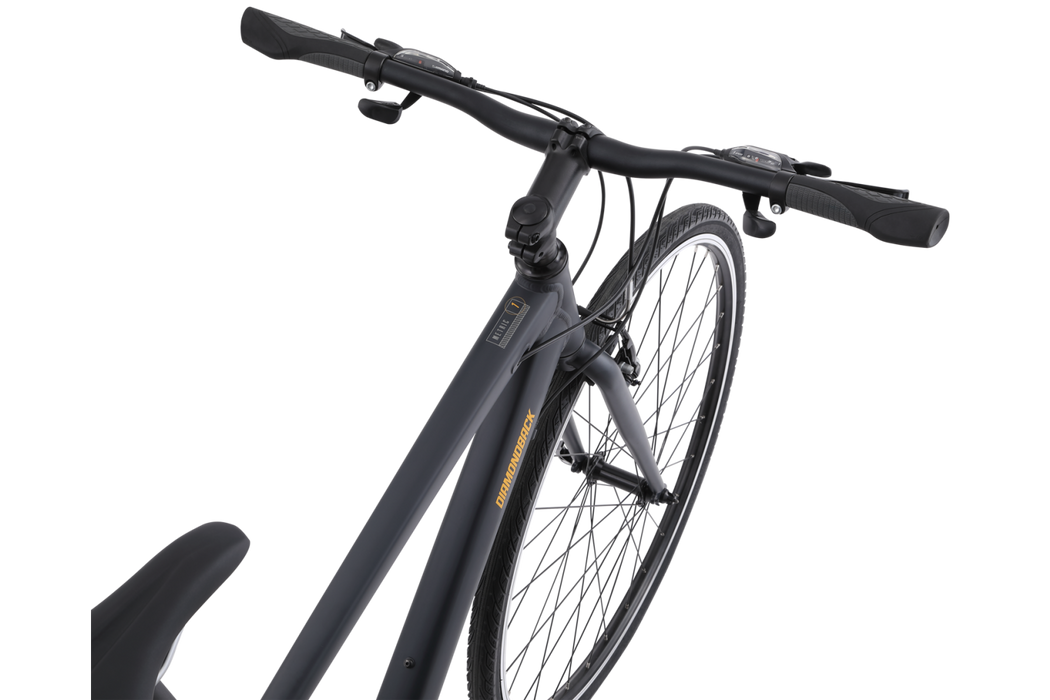

| HANDLEBAR | Aluminum 15mm Rise, 31.8 |
| GRIPS | ERGO Comfort |
| STEM | Aluminum 31.8 Bar Bore |

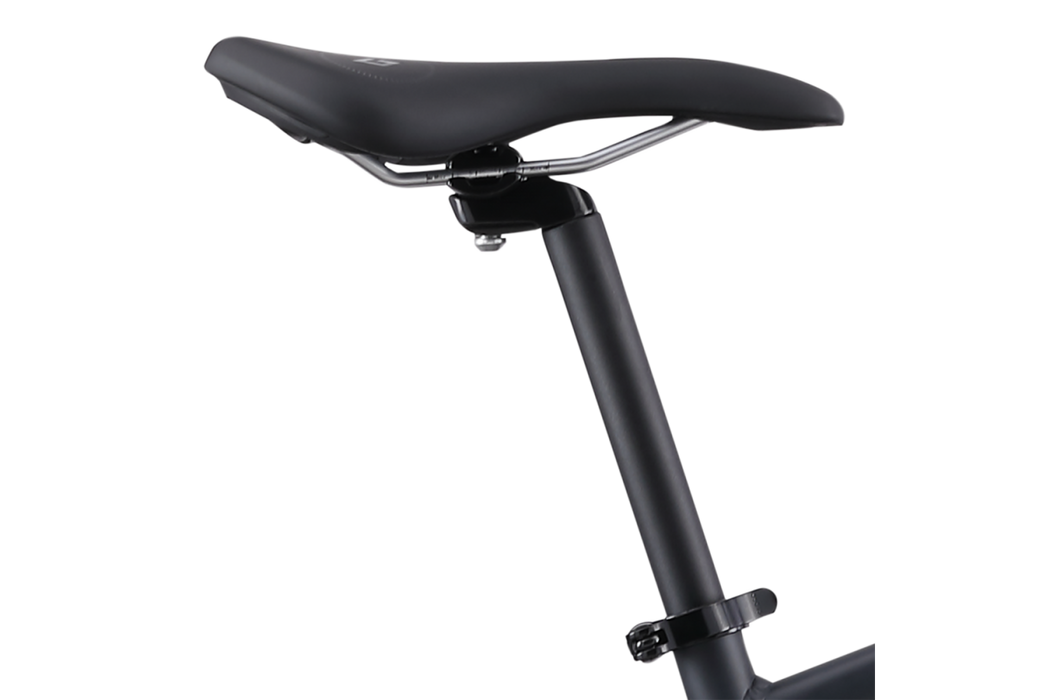

| SEAT | DB Performance Padded, w/Steel Rail |
| SEATPOST | Aluminum Micro Adjust 27.2x350mm |
| EXTRAS | Rack and Fender Mounts |
| WEIGHT | 26.43 lbs |
| BRAKES | Tektro 837, Aluminum V-Brake |
Geometry:
| FRAME SIZE | SM 5'4" - 5'7" | MD 5'7"-5'10" | LG 5'10" - 6'1" | XL 6'1" - 6'4" |
|---|---|---|---|---|
| Rider Height | - | - | - | - |
| Bike Stand Over Height | 689.0 mm | 720.0 mm | 770.0 mm | 799.0 mm |
| Bike Seat Tube Length | 380.0 mm | 425.0 mm | 490.0 mm | 525.0 mm |
| Bike Top Tube Length | 545.0 mm | 555.0 mm | 570.0 mm | 585.0 mm |
| Bike Head Tube Length | 120.0 mm | 135.0 mm | 150.0 mm | 175.0 mm |
| Bike Head Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Bike Seat Angle | 73.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
| Bike Wheel Base | 1008.0 mm | 1029.0 mm | 1050.0 mm | 1071.0 mm |
| Bike Chain Stay Length | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm |
| Bike Fork Offset | 45.0 mm | 45.0 mm | 45.0 mm | 45.0 mm |
| Bike Bb Height | 280.0 mm | 280.0 mm | 280.0 mm | 280.0 mm |
| Bike Bb Drop | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm |
| Bike Stem Length | 75.0 mm | 90.0 mm | 90.0 mm | 105.0 mm |
| Bike Handlebar Width | 620.0 mm | 620.0 mm | 620.0 mm | 620.0 mm |
| Bike Crank Length | 170.0 mm | 170.0 mm | 170.0 mm | 170.0 mm |
| Bike Seat Post Length | 300.0 mm | 300.0 mm | 300.0 mm | 300.0 mm |
| Bike Stack | 545.0 mm | 559.0 mm | 573.0 mm | 599.0 mm |
| Bike Reach | 378.0 mm | 384.0 mm | 395.0 mm | 402.0 mm |
| Bike Fork Length | 398.0 mm | 398.0 mm | 398.0 mm | 398.0 mm |
